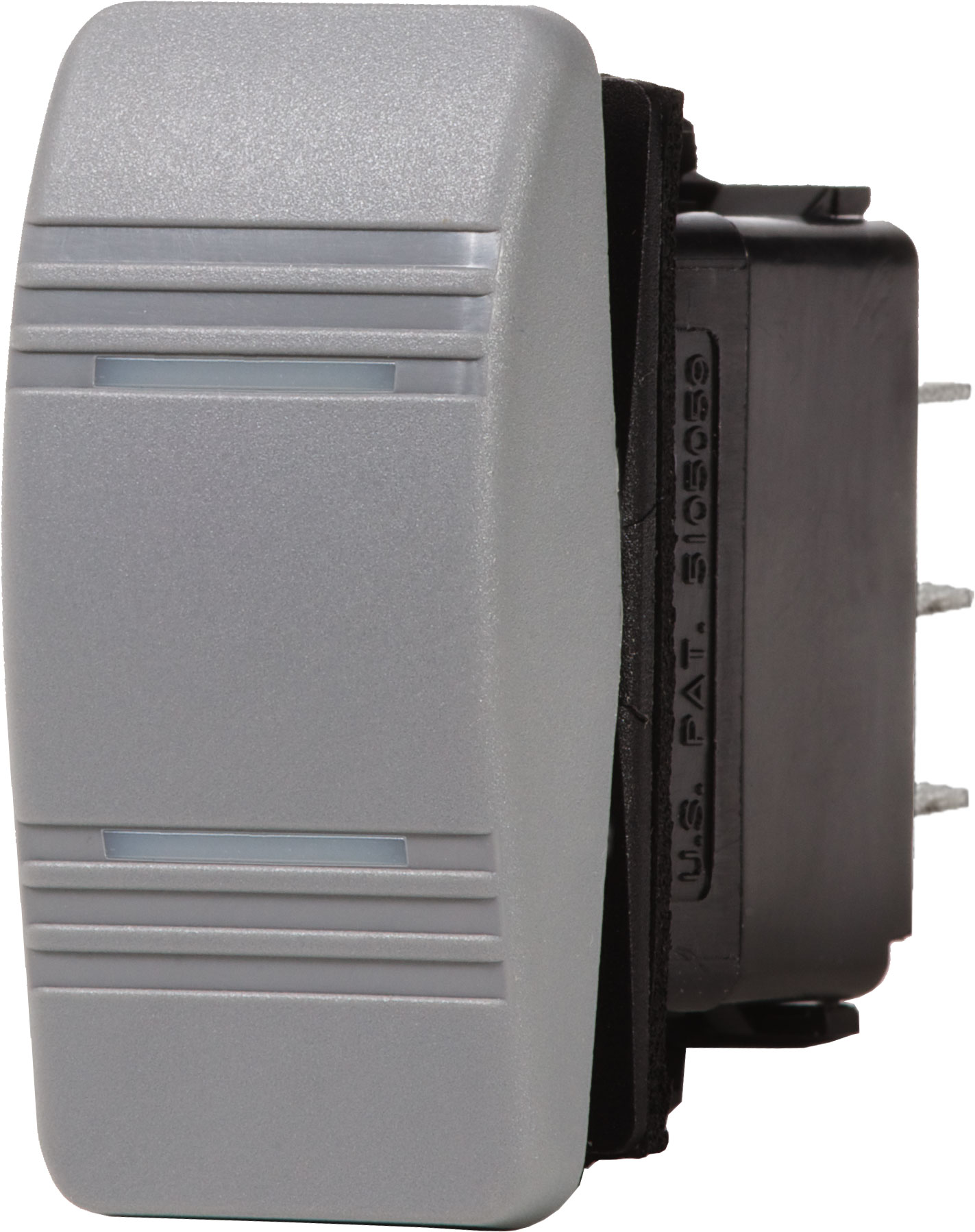

Blue Sea Systems Switch DPDT On-On Gray – 8275

Description

Blue Sea Systems Switch DPDT On-On Gray – 8275

The Blue Sea Systems Switch DPDT On-On Gray is designed for marine electrical switching and control.

• Vibration, shock, thermoshock, moisture and salt spray resistant
• Specially manufactured for mounting in Blue Sea Systems’ water resistant panels
• Ignition Protected – Safe for installation aboard gasoline powered boats
• Meets UL1500 and ISO8846 ignition protection requirements
• Action: ON-ON

For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.

Specifications

• Action: ON-ON
• Pole / Throw: DPDT
• Actuator Color: Gray – Contura III
• Common Applications: switching between shunts or current transformers with one meter
• Maximum Amperage: 20A @ 12V 15A @ 24V
• Amperage Operating Current: 18mA (LED)
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: 85°C
• Actuator Position to Light LED: ON
• Embedded LEDs: 2
• Lighting: LED rated 100,000 hours half-life
• Seals: Internal and external gasket panel seal
• Weight: 0.09 lb (0.04 kg)
• Manufacturer: Blue Sea Systems
• Part Number: 8275
