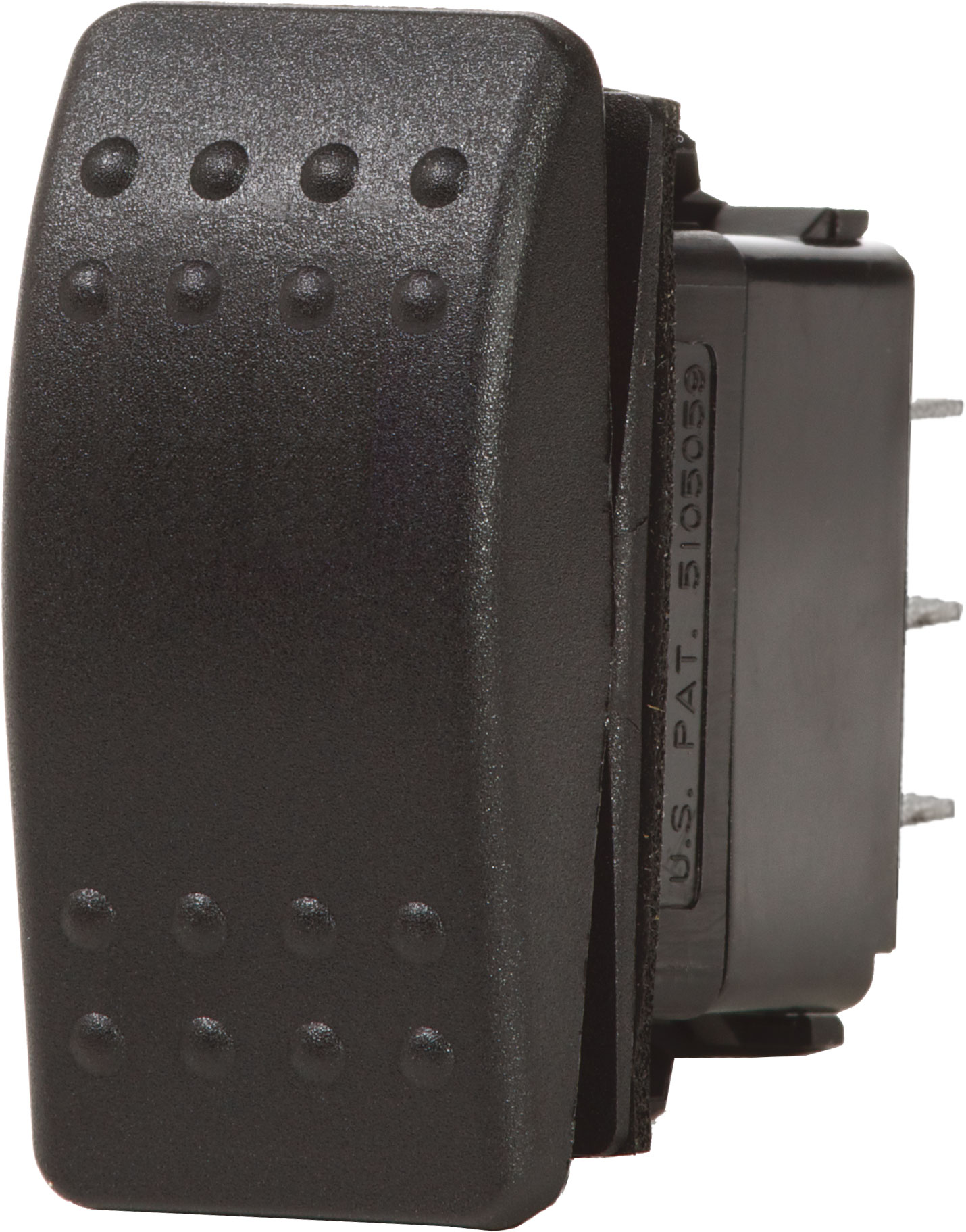

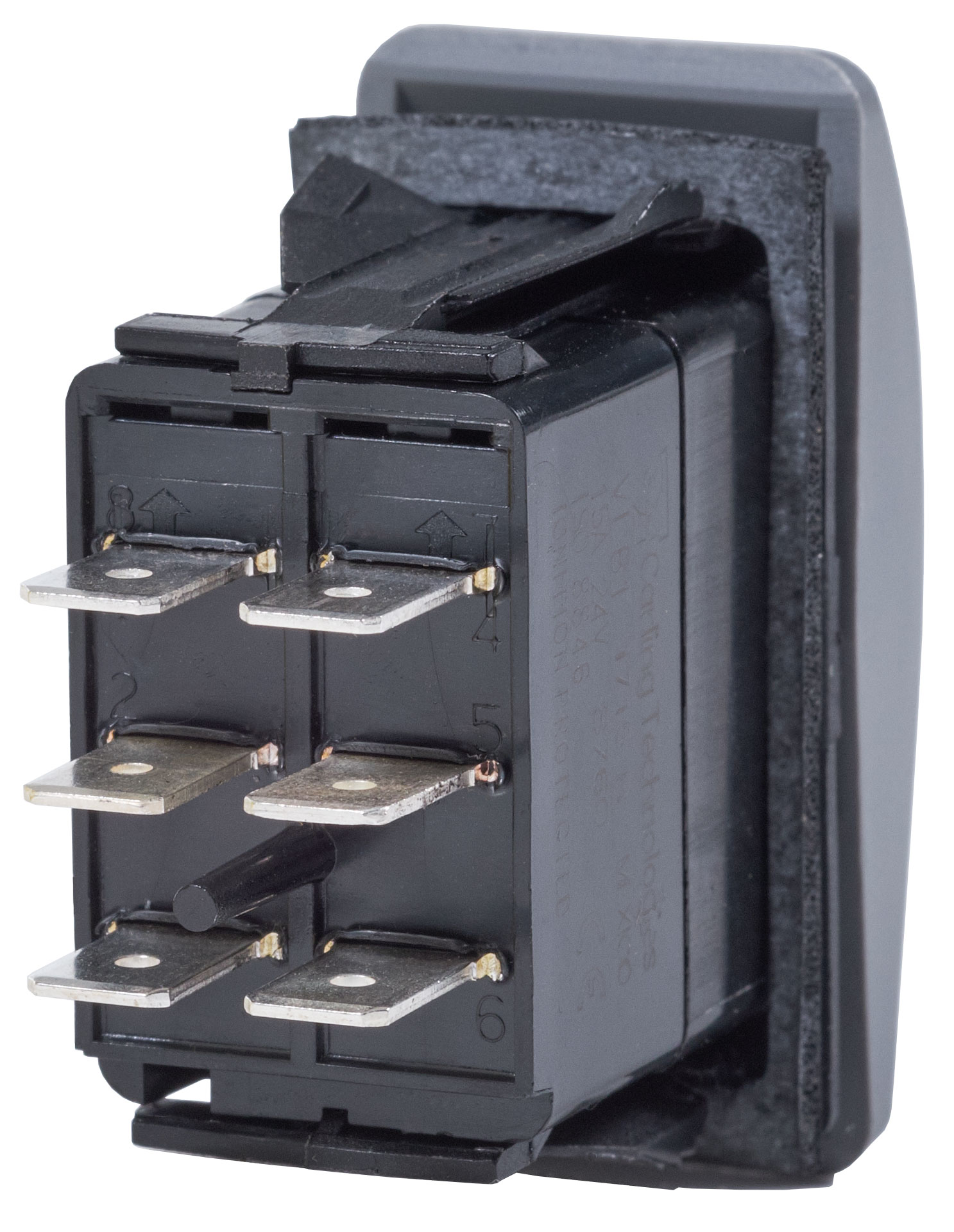

Blue Sea Systems Contura II DPDT Switch – Black, (ON)-OFF-(ON) – 7938

Description

Blue Sea Systems Contura II DPDT Switch – Black, (ON)-OFF-(ON) – 7938

The Blue Sea Systems Contura II DPDT Switch is a black momentary-center-off-momentary rocker switch for marine control applications such as power-operated hatches. It is engineered for resistance to vibration, shock, thermal shock, moisture, and salt spray.

• Momentary (ON)-OFF-(ON) action
• Double-pole double-throw (DPDT) switching
• Vibration, shock, thermal-shock, moisture, and salt-spray resistant
• Mounts in Blue Sea Systems Contura water-resistant panels and Contura switch mounting panels
• Internal and external gasket panel seals support marine installations

For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.

Specifications

• Action: (ON)-OFF-(ON)
• Pole / Throw: DPDT
• Actuator Color: Black – Contura II
• Common Application: Power-operated hatches
• Maximum Amperage: 20A @ 12V / 15A @ 24V
• Minimum Operating Temperature: -40 C
• Maximum Operating Temperature: 85 C
• Embedded LEDs: 0
• Weight: 0.09 lb (0.04 kg)
• Cutout Size: Standard Contura switch cutout: approx. 1.45 in H × 0.83 in W (36.8 mm × 21.1 mm)
• Switch Body Envelope: Approx. 2.10 in D × 1.40 in H × 0.86 in W (53.3 mm × 35.6 mm × 21.8 mm)
• Product Dimensions: 5.33 cm L × 3.56 cm W × 2.18 cm H
• Manufacturer: Blue Sea Systems
• Part Number: 7938
