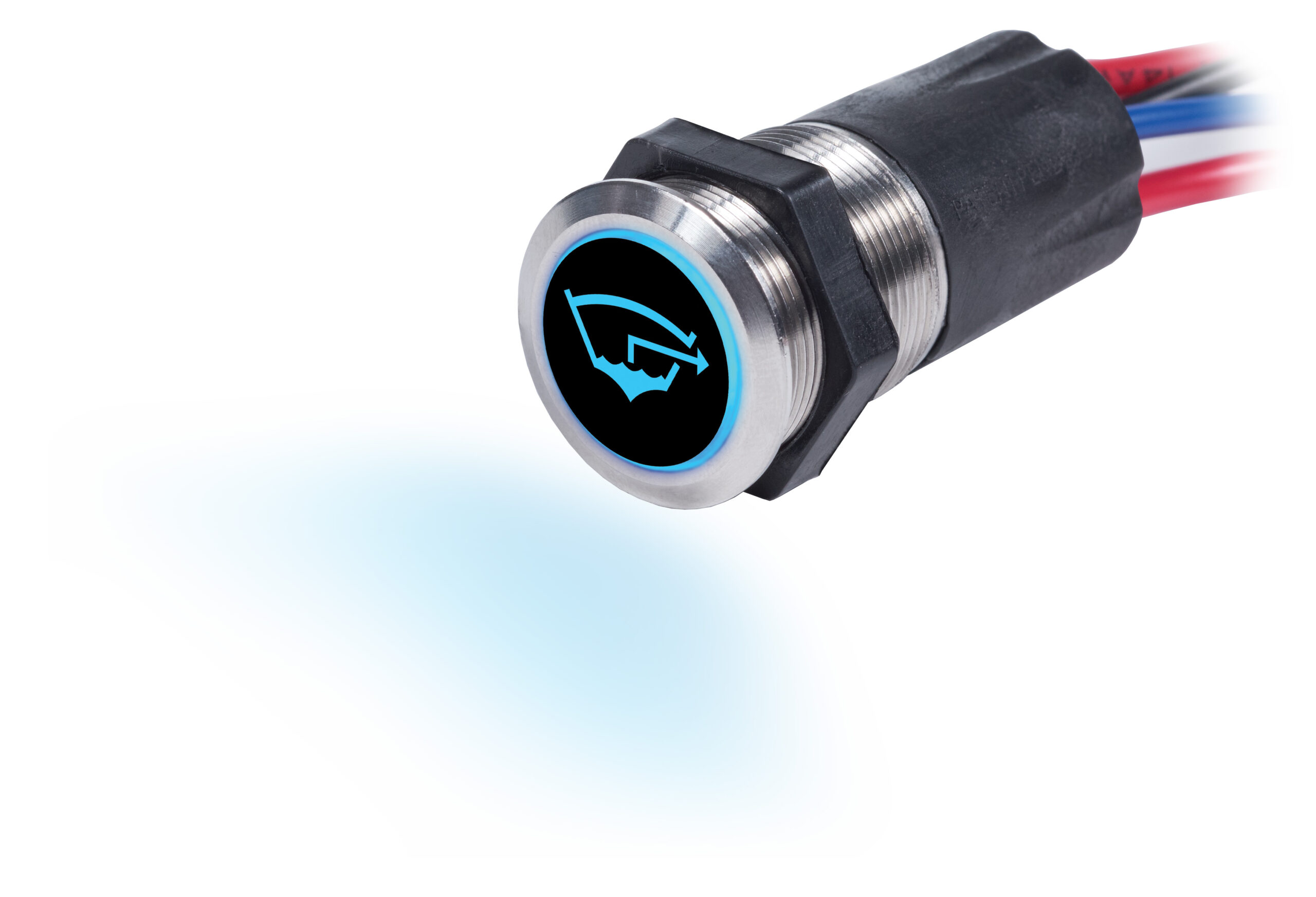

BLUE SEA SYSTEMS 15A Push Button Backlit Switch OFF-(ON)- 4181

Description

BLUE SEA SYSTEMS 15A Push Button Backlit Switch OFF-(ON – 4181.

• Backlit button is blue when OFF and red when ON
• Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
• Additional 50 ICON label kit sold separately

Specifications
ActionÃ’šÃ‚	OFF-(ON)
Amperage	15A @ 12V DC
Nominal Voltage	12V DC
Maximum Voltage	15V DC
Maximum LED Operating Current	20mA
Max Panel Thickness	0.24in (6.1 mm)
Mounting Hole	7/8″ (22mm)
Switching Cycles	10,000
Temperature Range	-20Ã’š°C to 55Ã’š°C
Termination	3″ – Bare Wire Pigtail
Wire Size	Black & Blue Wires 18 AWG Red & Orange Wires 16 AWG
Weight	0.35lb (0.16 kg)
