Blue Sea Systems 15A Push Button Backlit Switch OFF-ON – 4180

Description

Blue Sea Systems 15A Push Button Backlit Switch OFF-ON – 4180

The Blue Sea Systems 15A Push Button Backlit Switch OFF-ON is designed for marine electrical switching and control.

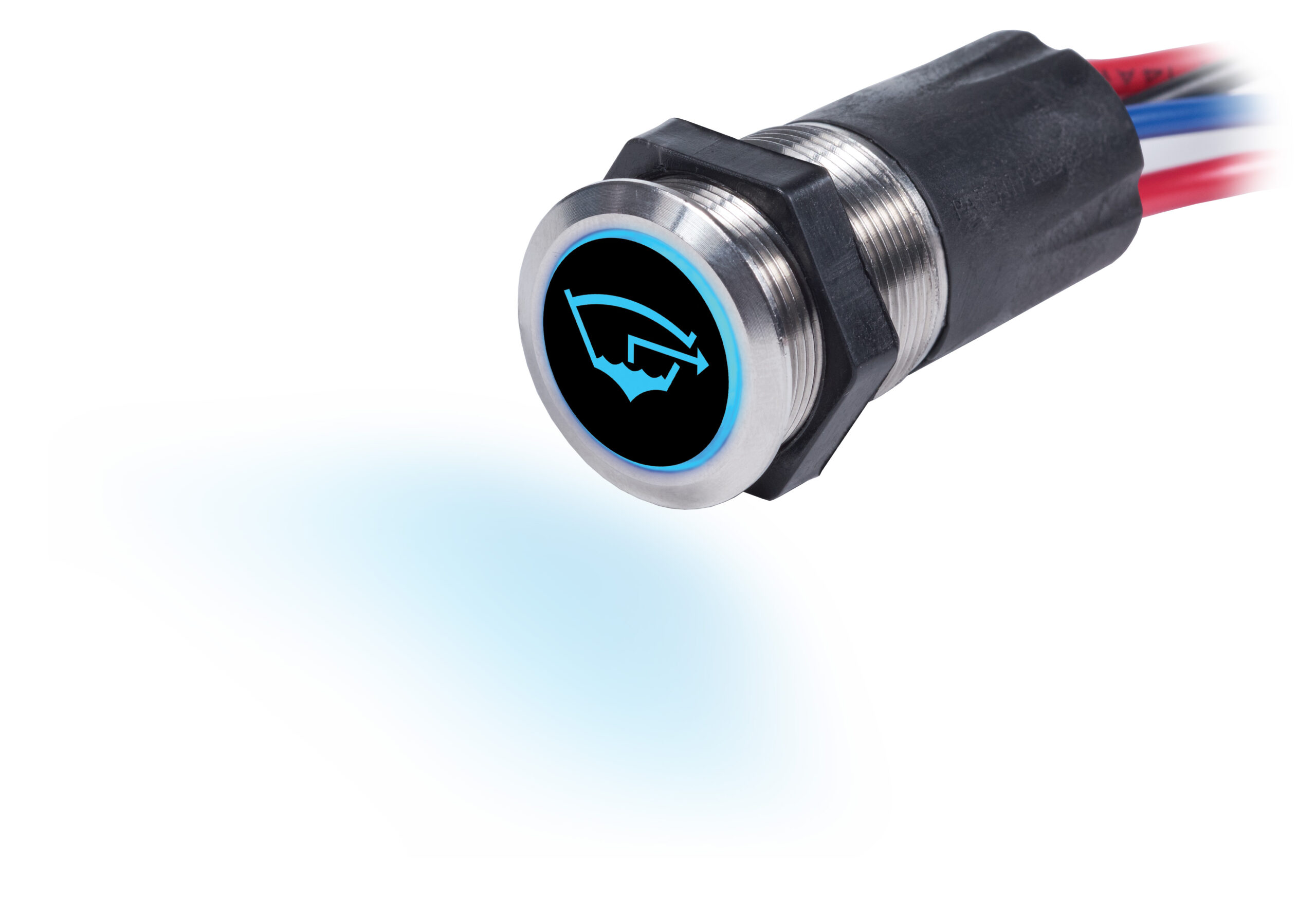

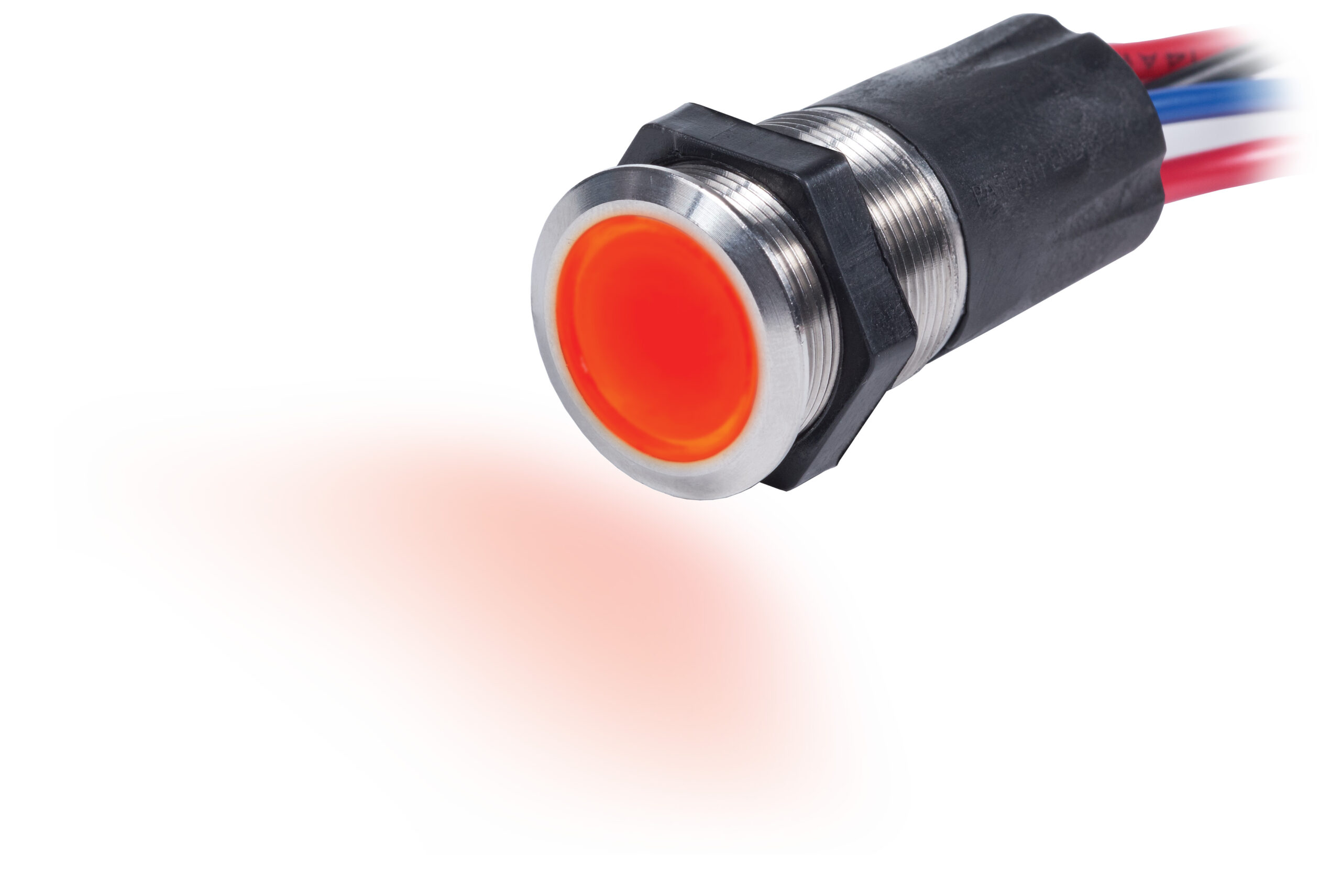

• Backlit button is blue when OFF and red when ON
• Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
• Additional 50 ICON label kit sold separately
• Action: OFF-ON
• Designed for reliable use in marine electrical installations

For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.

Specifications

• Action: OFF-ON
• Amperage: 15A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum Voltage: 15V DC
• Maximum LED Operating Current: 20mA
• Max Panel Thickness: 0.24 in (6.1 mm)
• Mounting Hole: 7/8″ (22 mm)
• Switching Cycles: 10,000
• Temperature Range: -20°C to 55°C
• Termination: 3″ – Bare Wire Pigtail
• Wire Size: Black & Blue Wires 18 AWG Red & Orange Wires 16 AWG
• Weight: 0.35 lb (0.16 kg)
• Mounting Cutout: Common push-button breaker mounting hole is approx. 3/8 in (9.5 mm); verify exact part drawing before drilling
• Product Envelope: Approx. 1.65 in L × 0.98 in W × 0.98 in H (42 mm × 25 mm × 25 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 4180
