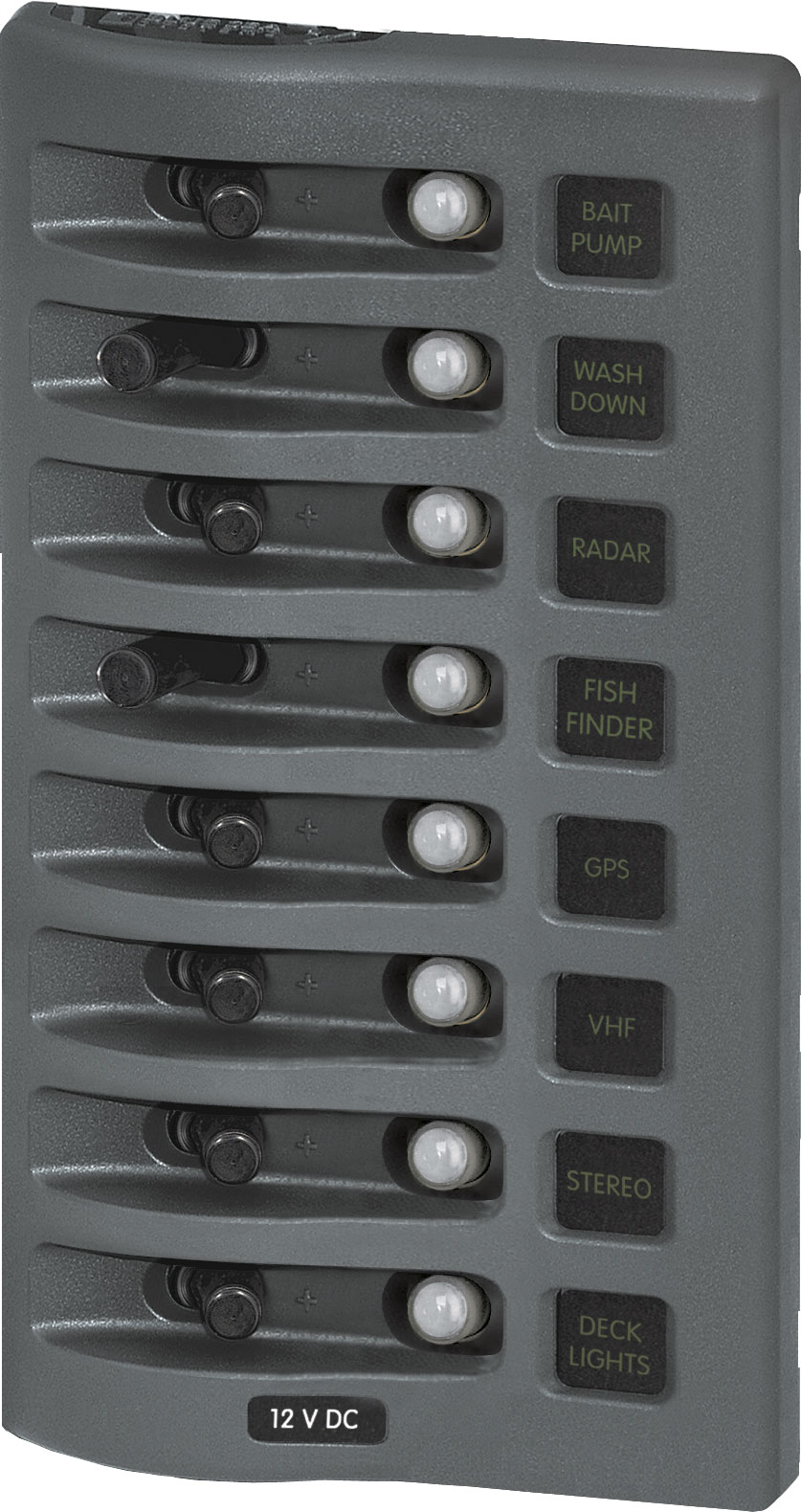

Blue Sea Systems WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 8 Positions – 4378
The Blue Sea Systems WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 8 Positions is designed for marine and mobile electrical circuit protection.
- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Available in 4 and 6 circuit models
For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.
Specifications
- Weatherproof: Waterproof
- Positions: 8
- Nominal Voltage: 12V DC / 24V DC
- Circuit Protection: Circuit Breaker
- Maximum Amperage: 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit)
- Panel Cumulative Rating: 45A
- Backlit Label: Green LED
- Backlighting Amperage: 10mA /Illuminated Circuit
- Backlighting Voltage: 12 or 24V DC
- Material: Reinforced Polycarbonate
- Height: 7.70 in (195.58 mm)
- Width: 4.25 in (107.95 mm)
- Depth: 3.50 in (88.9 mm)
- Weight: 1.83 lb (0.83 kg)
- Product Dimensions: 10.79 cm L × 19.56 cm W × 8.89 cm H
- Manufacturer: Blue Sea Systems
- Part Number: 4378
