Description

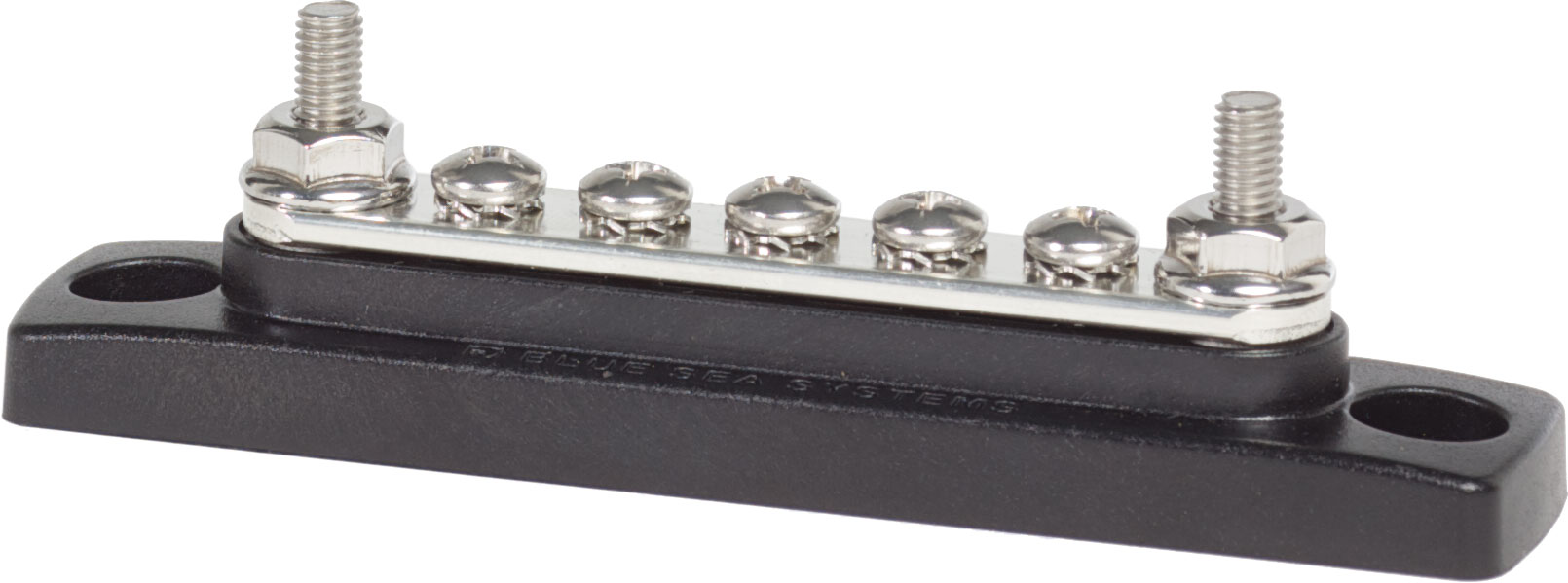

Blue Sea Systems Common 100A Mini BusBar – 5 Gang – 2304
The Blue Sea Systems Common 100A Mini BusBar – 5 Gang is designed for organized, secure marine power distribution and termination.
- Great for limited space applications
- Provides an organized common connection point for onboard positive or negative distribution
- Helps reduce wiring clutter and simplify service access in electrical panels or lockers
- Suited to 300V AC applications when installed within the published electrical rating
- Built for the specified 100 Amp electrical rating with correctly sized conductors and protection
Use the published electrical ratings and mounting dimensions to confirm compatibility with the vessel’s DC system, panel opening, wiring, and protection scheme.
Specifications
- Maximum Voltage: 300V AC / 48V DC
- Number of Screw Terminals: 5
- Number of Terminal Studs: 2
- Terminal Type: #10-32 Stud #8-32 Screw
- Continuous Rating: 100A
- Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material: Tin-Plated Copper CDA 110/ UNS11000
- Screw Terminal Torque: 15 in-lb (1.69 N·m)
- Stud Torque: 18 in-lb (2.03 N·m)
- Weight: 0.15 lb (0.07 kg)
- Manufacturer: Blue Sea Systems
- Part Number: 2304
