Blue Sea Systems Common 150A BusBar – Four 1/4″-20 Studs with Cover – 2307

Description

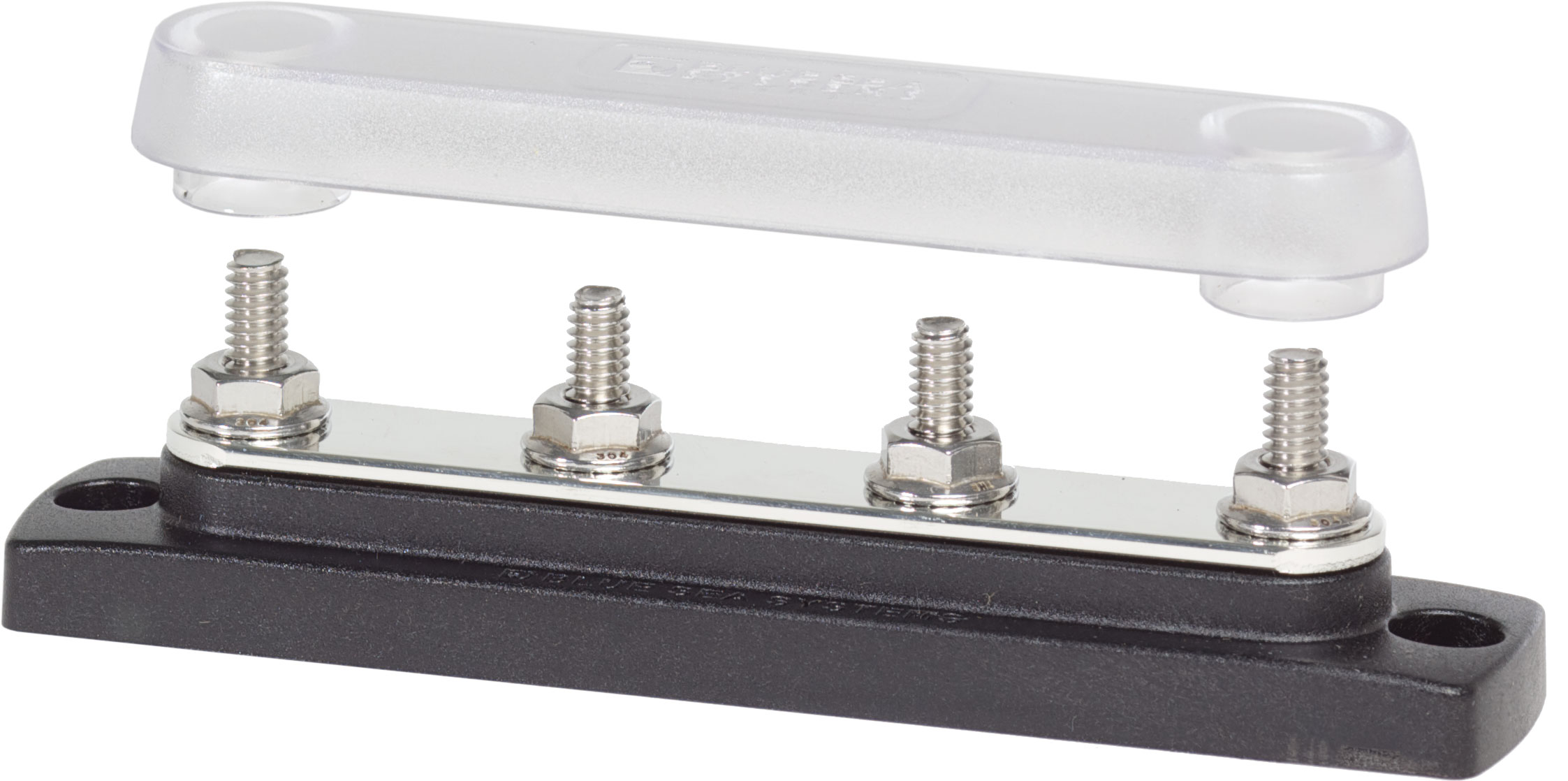

Blue Sea Systems Common 150A BusBar – Four 1/4″-20 Studs with Cover – 2307

The Blue Sea Systems Common 150A BusBar – Four 1/4″-20 Studs with Cover is designed for organized, secure marine power distribution and termination.

• The industry standard busbar for positive distribution
• The industry standard busbar for the collection of negative or AC ground circuits
• Provides an organized common connection point for onboard positive or negative distribution
• Helps reduce wiring clutter and simplify service access in electrical panels or lockers
• Covered configuration helps protect conductors and terminals from accidental contact

Use the published electrical ratings and mounting dimensions to confirm compatibility with the vessel’s DC system, panel opening, wiring, and protection scheme.

Specifications

• Maximum Voltage: 300V AC / 48V DC
• Number of Terminal Studs: 4
• Terminal Type: 1/4″ Stud
• Continuous Rating: 130A AC / 150A DC
• Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
• Cover Material: Clear Polycarbonate
• Stud Torque: 60 in-lb (6.78 N·m)
• Weight: 0.39 lb (0.18 kg)
• Manufacturer: Blue Sea Systems
• Part Number: 2307
