Description

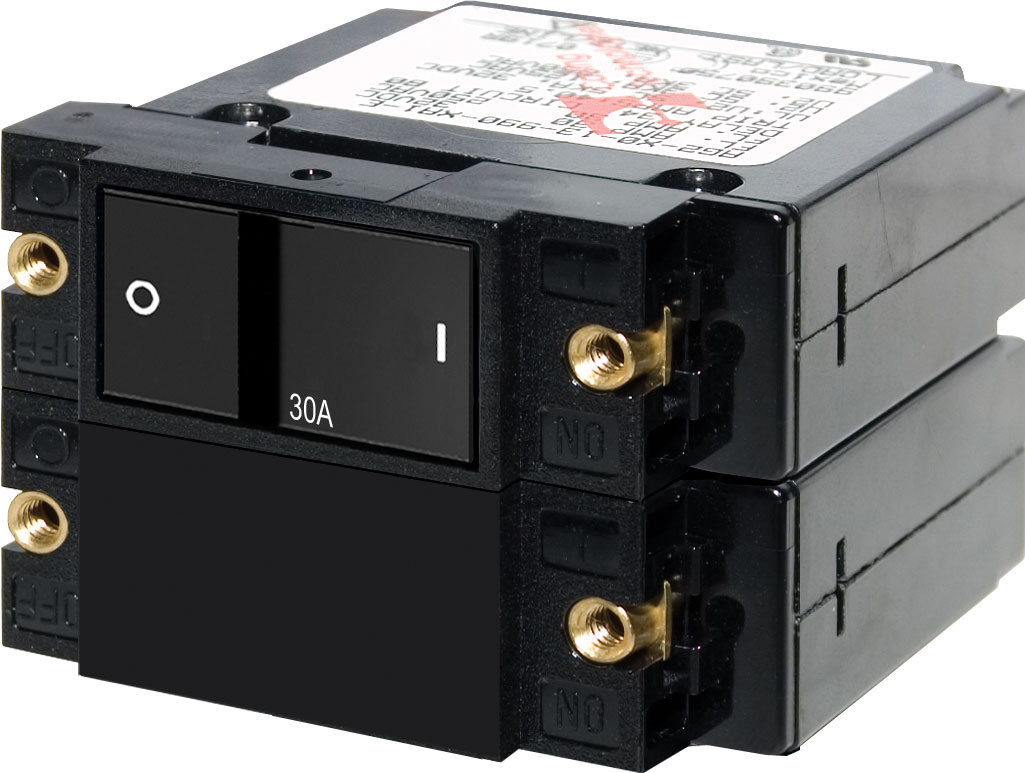

BLUE SEA SYSTEMS A-Series Flat Rocker Circuit Breaker – Double Pole 30A – 7414.
- Color actuator indicates “OFF” position
- “Trip Free” design cannot be held “ON” during fault current condition
- International ON/OFF symbols support vertical or horizontal mounting
| Specifications | |
|---|---|
| Amperage | 30A AC 30A DC |
Actuator Style  | Flat Rocker |
| Poles | 2 |
| Maximum Voltage | 120V AC 240V AC 32V DC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Interrupt Capacity | 3000A @ 240V AC 1500A @ 240V AC[TUV] 5000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.38lb (0.17 kg) |
| Weight | 0.38lb (0.17 kg) |
