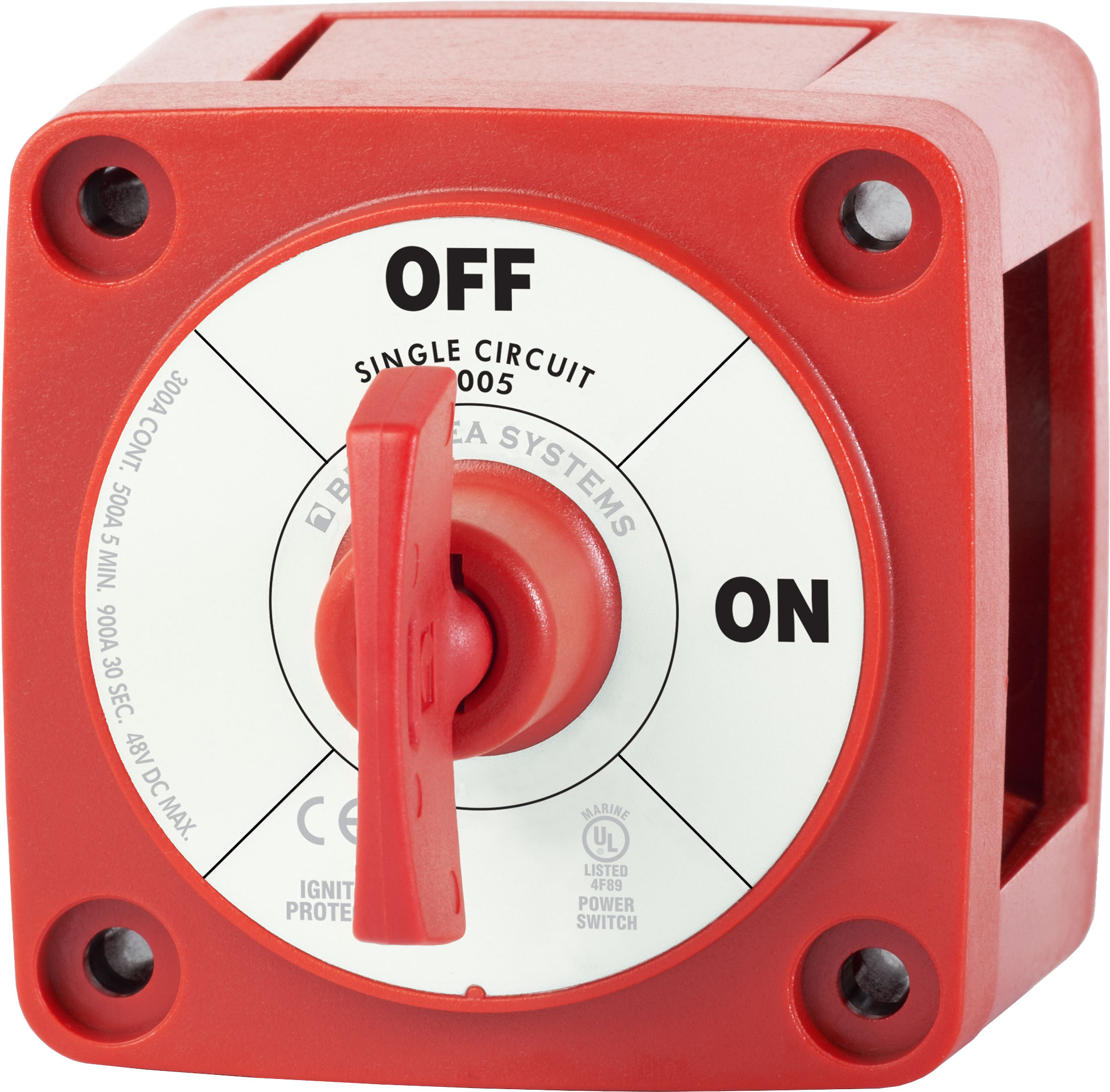

BLUE SEA SYSTEMS m-Series Mini On-Off Battery Switch with Key – Red – 6005

Description

BLUE SEA SYSTEMS m-Series Mini On-Off Battery Switch with Key – Red – 6005.Ã’šÃ‚  Switches a single battery to a single load group

• Ignition protectedââ’š¬”safe for installation aboard gasoline powered boats

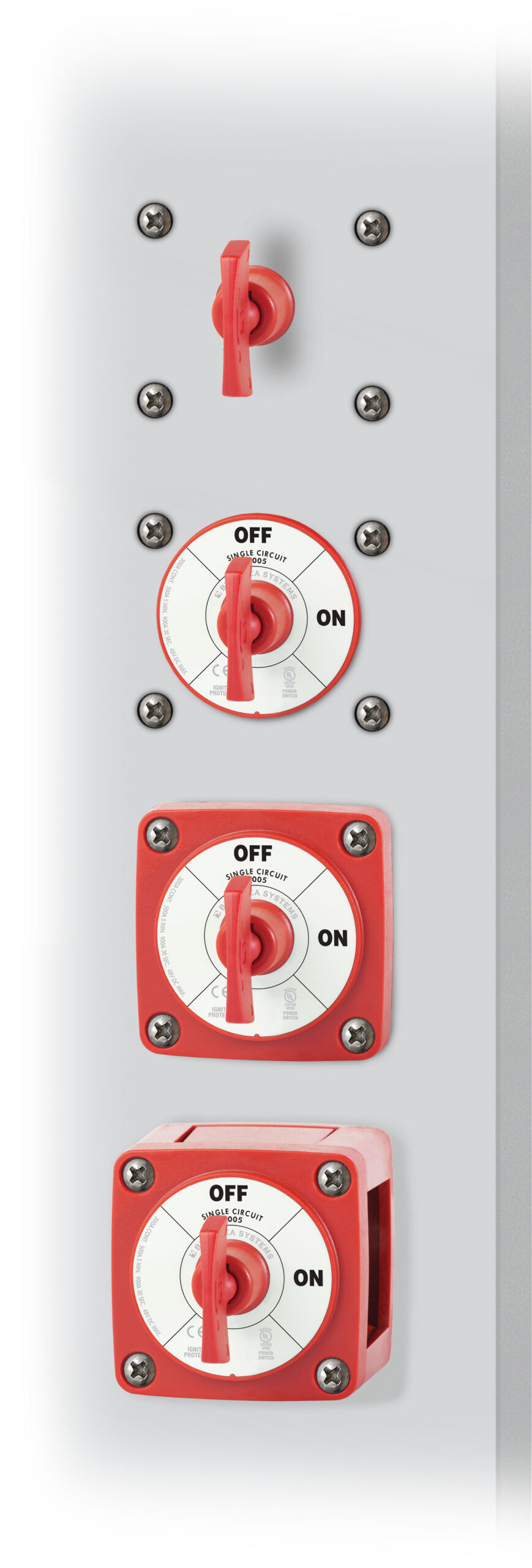

• Case design allows surface, front panel, or rear panel mounting

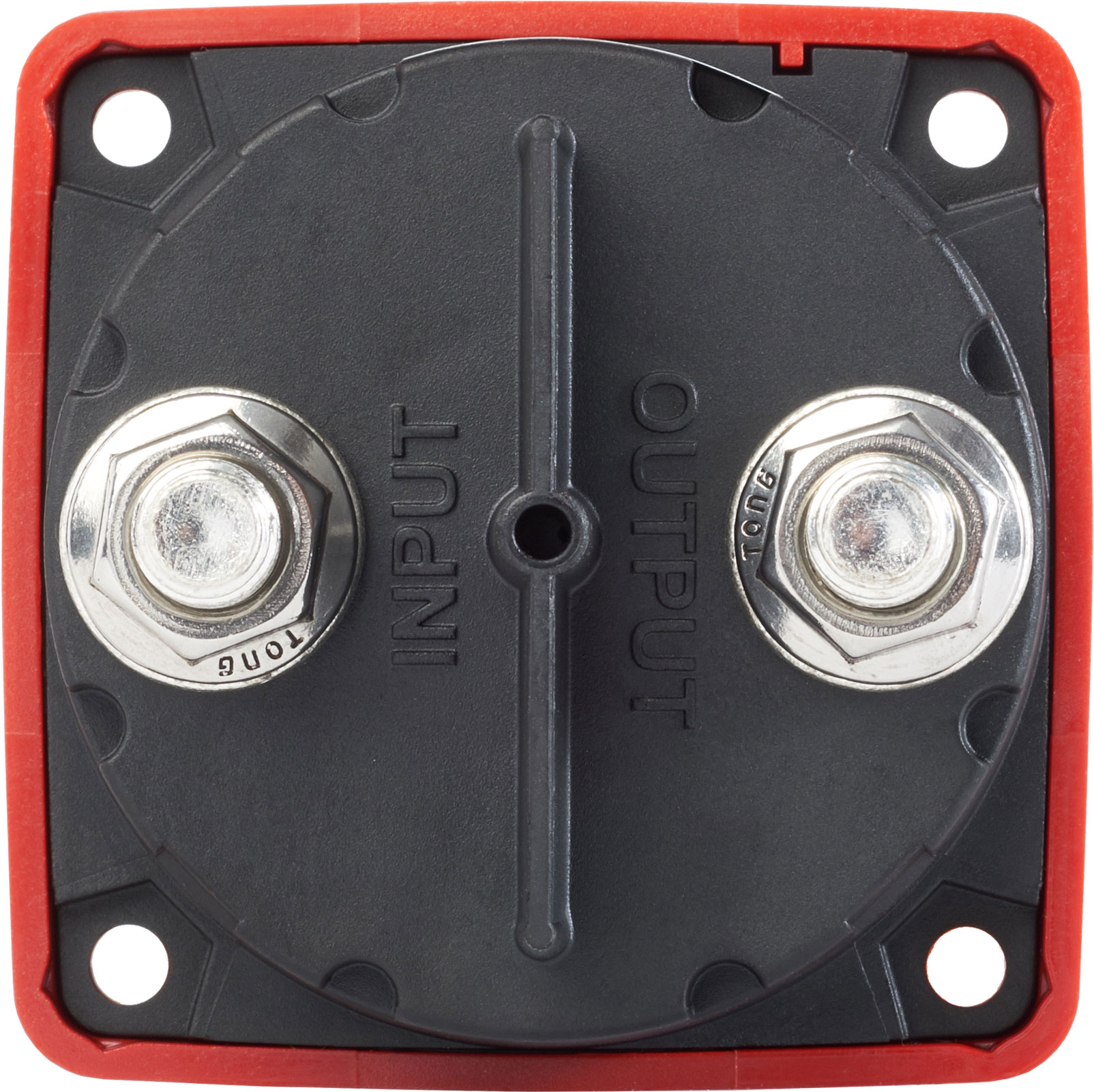

• Isolating cover with snap-on sections protects rear contacts

Specifications
Switch TypeÃ’šÃ‚	Single Circuit ON-OFF
Color	Red
Switch Positions	2
Battery Combine	No
Alternator Field DisconnectÃ’šÃ‚	No
Maximum Voltage	48V DC
Stud Size	3/8″
Terminal Stud Torque	120 in-lb (13.56 Nm)
Continuous RatingÃ’šÃ‚	300A
Intermittent RatingÃ’šÃ‚	500A (5 min)
Cranking Rating 30 secÃ’šÃ‚	900A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.12in (28.45 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept #10 Screw
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Terminal Stud Size	3/8″ – 16 (M10)
Weight	0.62lb (0.28 kg)

Switches a single battery to a single load group.
