Description

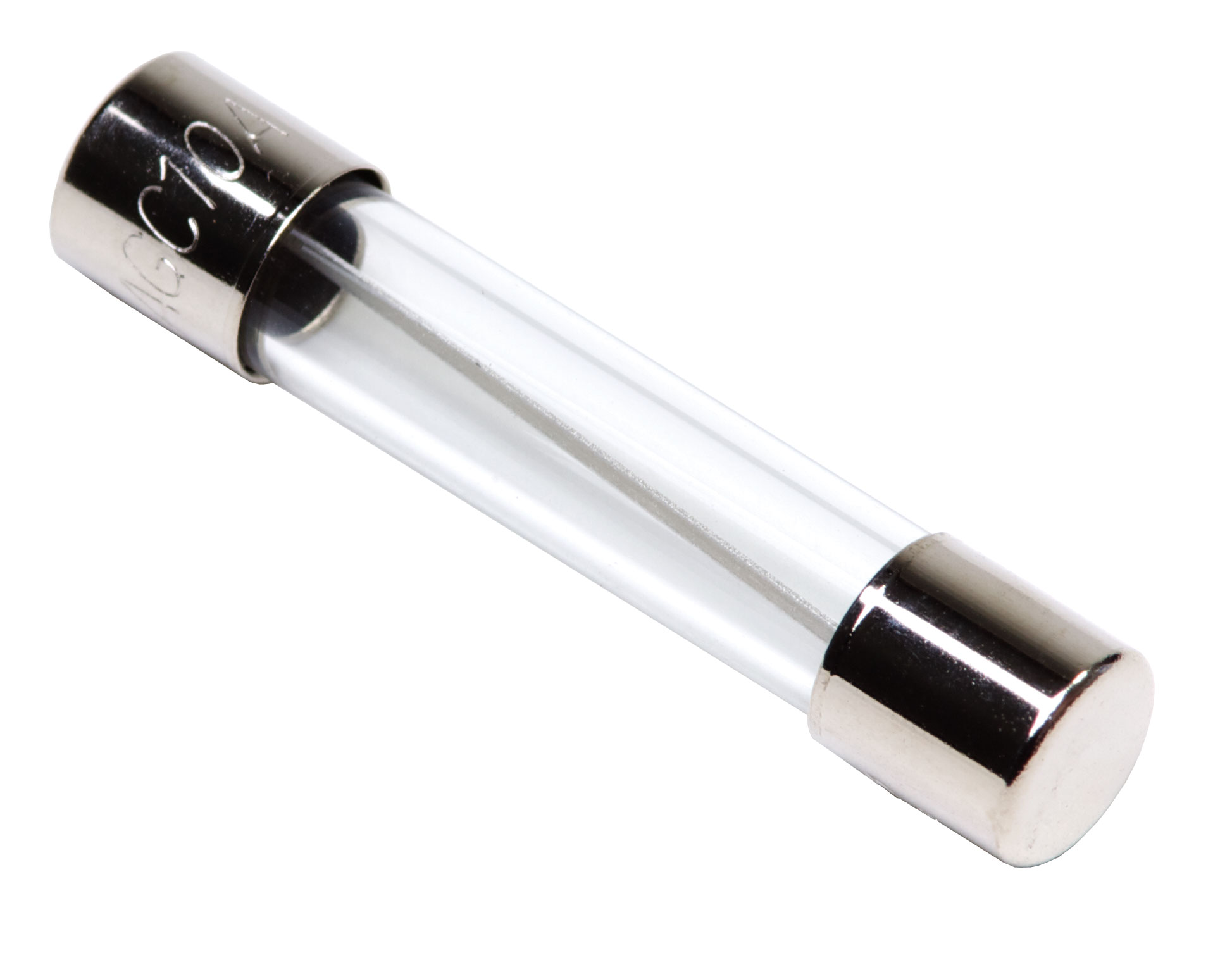

Blue Sea Systems AGC Fuse 7.50A (5-Pack) – 5213
The Blue Sea Systems AGC Fuse 7.50A (5-Pack) is designed for marine and mobile electrical circuit protection.
- For use with Blue Sea Systems’ ST Glass Fuse Blocks and AGC® or MDL® fuse holders
- AGC® and MDL® fuses are typically used in DC systems up to 32V DC
- AGC® fuses to 10A are rated for use in AC at 125V AC and to a maximum 250V AC
- Visible indication of blown condition
- AGC® Five per retail package
For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.
Specifications
- Amperage: 7.5A
- Maximum Voltage: 250V AC / 32V DC
- Weight: 0.03 lb (0.01 kg)
- Maximum DC Voltage: 32V DC
- Package Quantity: 5
- Maximum AC Voltage: 250V AC
- Fuse Body Size: AGC glass fuse format; approx. 1.25 in L × 0.25 in diameter (31.8 mm × 6.4 mm)
- Manufacturer: Blue Sea Systems
- Part Number: 5213
