Description

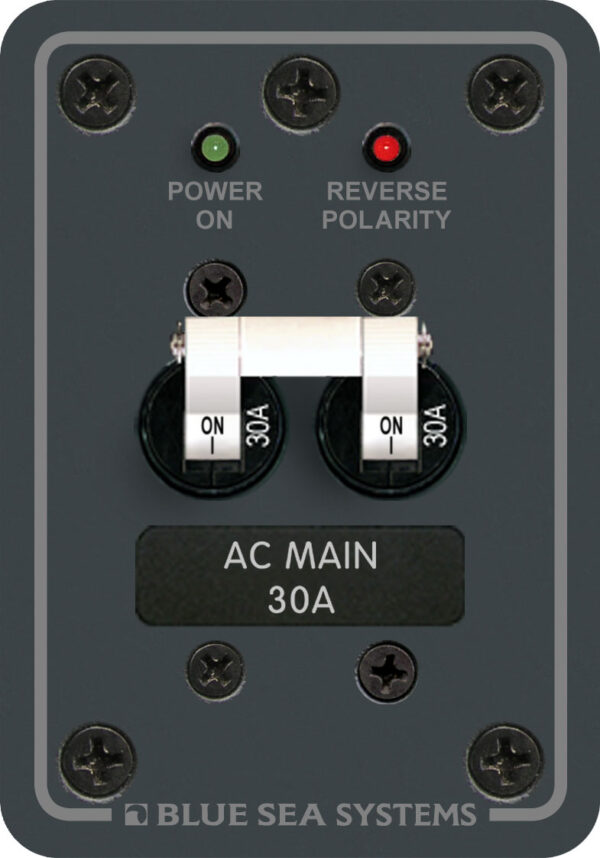

BLUE SEA SYSTEMS AC Main Panel 30A – 8077.
- Red reverse polarity indicating LED
- Safety ground screw on panel back
- Combines switching and circuit protection into a single device
- “Trip Free” design cannot be held “ON” during fault current condition
| Specifications | |
|---|---|
| Nominal Voltage | 120V AC |
| Maximum Voltage | 277V AC 65V DC |
| Final Panel Finish | 2-part Polyurethane slate gray finish |
| Panel Material | Heavy 1/8″ aluminum 5052 alloy |
| Primary Finish | Mil-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance |
| Height | 3.75in (95.25 mm) |
| Width | 2.63in (66.8 mm) |
| Weight | 0.51lb (0.23 kg) |
| Weight | 0.51lb (0.23 kg) |
