Blue Sea Systems Terminal Fuse 175A – 5186

Description

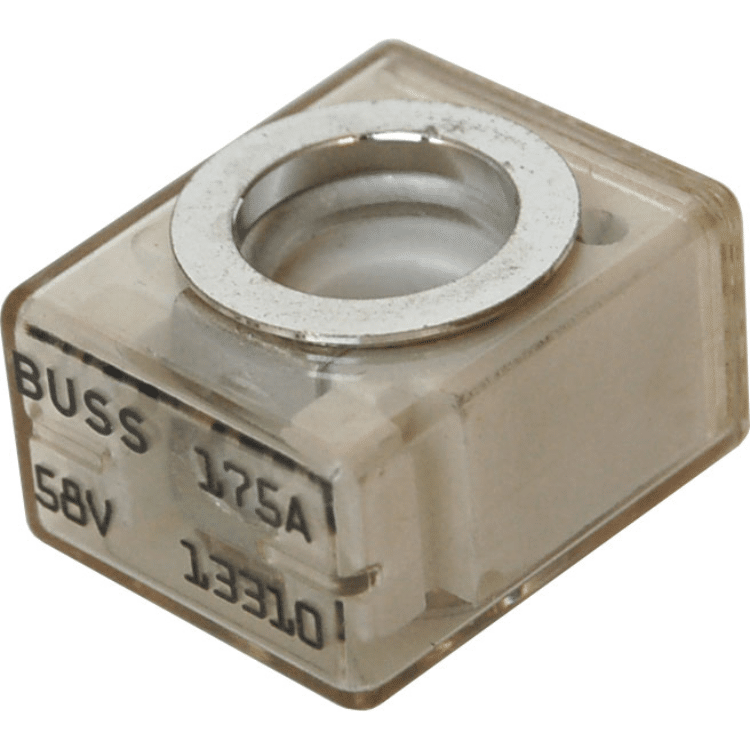

Blue Sea Systems Terminal Fuse 175A – 5186

The Blue Sea Systems Terminal Fuse 175A is designed for marine and mobile electrical circuit protection.

• Requires Blue Sea Systems Terminal Fuse Block PN 5191 or PN 2151; do not mount directly to a battery terminal
• Interrupt rating satisfies ABYC requirements for DC main circuit protection on large battery banks
• Ignition protected for installation aboard gasoline-powered boats
• Clear window provides visual indication of a blown fuse
• Color coded by amperage rating

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage: 175A
• Maximum Voltage: 58V DC
• Interrupt Capacity: 10,000A @ 14V DC / 5,000A @ 32V DC / 2,000A @ 58V DC
• Ignition Protected: Yes
• Fuse Body Size: MRBF terminal fuse format; approx. 1.48 in L × 0.75 in W × 0.38 in H (37.5 mm × 19.0 mm × 9.5 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 5186
