Blue Sea Systems MIDI Fuse 70A (2-Pack) – 5254

Description

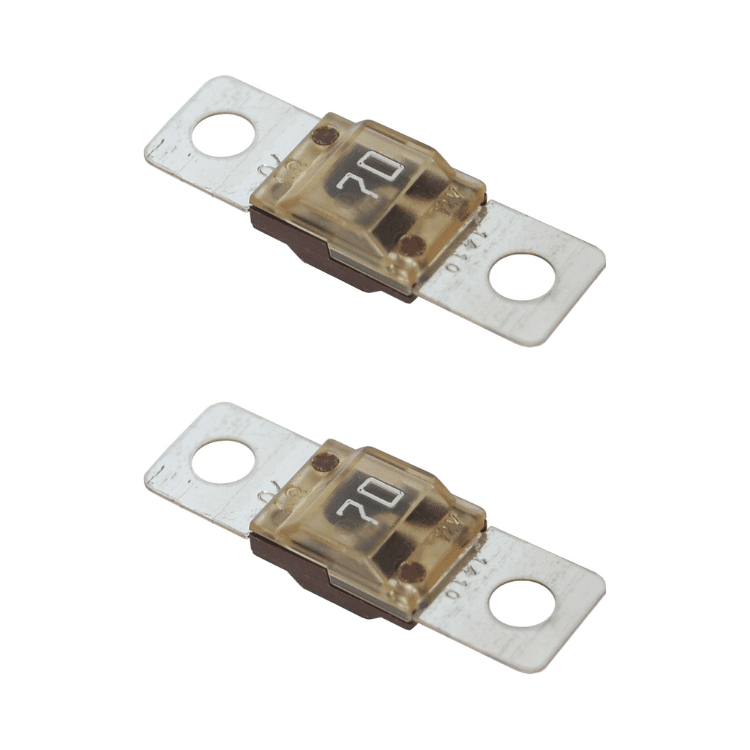

Blue Sea Systems MIDI Fuse 70A (2-Pack) – 5254

The Blue Sea Systems AMI/MIDI 70A Fuse is a fast-acting, high-current fuse designed for DC power distribution in marine, automotive, and off-grid electrical systems. Its compact design and tin-plated copper blades ensure reliable performance and corrosion resistance in harsh environments. The fuse features a clear cover for visible indication of blown fuses and is color-coded for easy amperage identification. When used with Blue Sea Systems’ SafetyHub family of products, it meets SAE J1171 ignition protection standards, making it safe for installation in engine compartments and fuel tank spaces. This fuse is ideal for applications requiring reliable circuit protection and easy maintenance, such as marine, emergency vehicles, and work trucks. Its robust construction and diagnostic features make it a dependable choice for professionals seeking efficiency and safety in power distribution.

• 70A fast-acting fuse suitable for high-current DC applications
• Compact design with tin-plated copper blades for corrosion resistance
• Clear cover provides visible indication of blown fuse
• Color-coded for easy amperage identification
• Ignition protected to SAE J1171 when used with compatible Blue Sea Systems products

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Fuse Type: AMI/MIDI
• Amperage: 70A
• Maximum Voltage: 32V DC
• Interrupt Capacity: 5,000A @ 16V DC; 2,000A @ 32V DC
• Operating Temperature: -40°C to +125°C
• Blade Material: tin-plated Copper CDA 110/UNS11000
• Maximum Torque: 40 in-lb (4.52 N·m)
• Regulatory Compliance: SAE J1171 Ignition Protected (when used with compatible Blue Sea Systems products)
• Weight: 0.05 lb (0.02 kg)
• Fuse Body Size: MIDI/AMI fuse format; approx. 1.66 in L × 0.47 in W × 0.33 in H (42.2 mm × 12.0 mm × 8.5 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 5254
