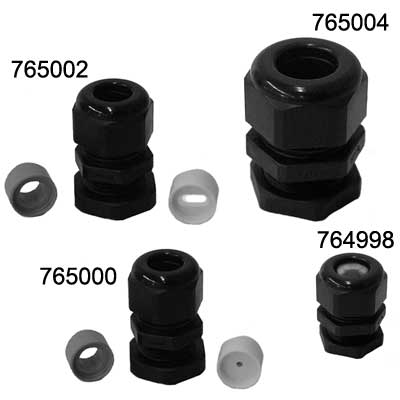

Ancor Wire Seal for Round Cable 18–10 AWG, 3/8″ NPT – 764998

Description

ANCOR Wire Seal, Round Cable, 18-10 AWG, 3/8″ NPT – 764998.  Wire seals provide low cost cable entries into panels and junction boxes. They are made of Nylon 6/6 flame resistant, self extinguishing Buna-N form seal. Strain relief fittings are resistant to salt water, acids, alkalis, alcohol, oils and are non-corrosive for use in the marine environment. They are good underwater to 300 feet /91.4 m (150 PSIG) provided there is a liquid tight seal between body and housing. Overlapping clamping spines allow for superior pull-out protection and resistance.

• All seals exceed NEMA 4 x or 6 specs
• UL 94 v-0
• Cable range 0.08 – 0.24 inches (2 – 6 mm)
• Thread size 3/8″ NPT
• Thread length 0.59 inches
• Clearance hole 0.68 inches
