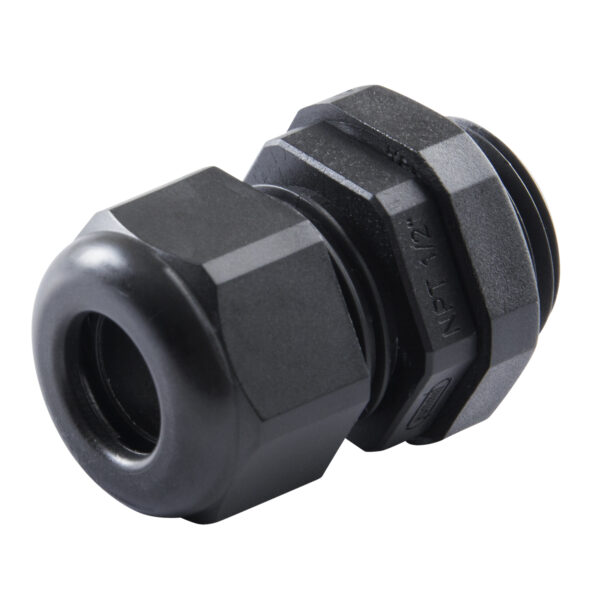

Ancor Wire Seal for Round Cable 10–2 AWG, 1/2″ NPT – 765000

Description

ANCOR Wire Seal, Round Cable, 10-2 AWG, 1/2″ NPT – 765000.  Wire seals provide low cost cable entries into panels and junction boxes. They are made of Nylon 6/6 flame resistant, self extinguishing Buna-N form seal. Strain relief fittings are resistant to salt water, acids, alkalis, alcohol, oils and are non-corrosive for use in the marine environment. They are good underwater to 300 feet /91.4 m (150 PSIG) provided there is a liquid tight seal between body and housing. Overlapping clamping spines allow for superior pull-out protection and resistance.

• All seals exceed NEMA 4 x or 6 specs
• UL 94 v-0
• Cable range 0.20-0.47 inches (5 – 12 mm)
• Thread size 1/2″ NPT
• Thread length 0.51 inches
• Clearance hole 0.83 inches
