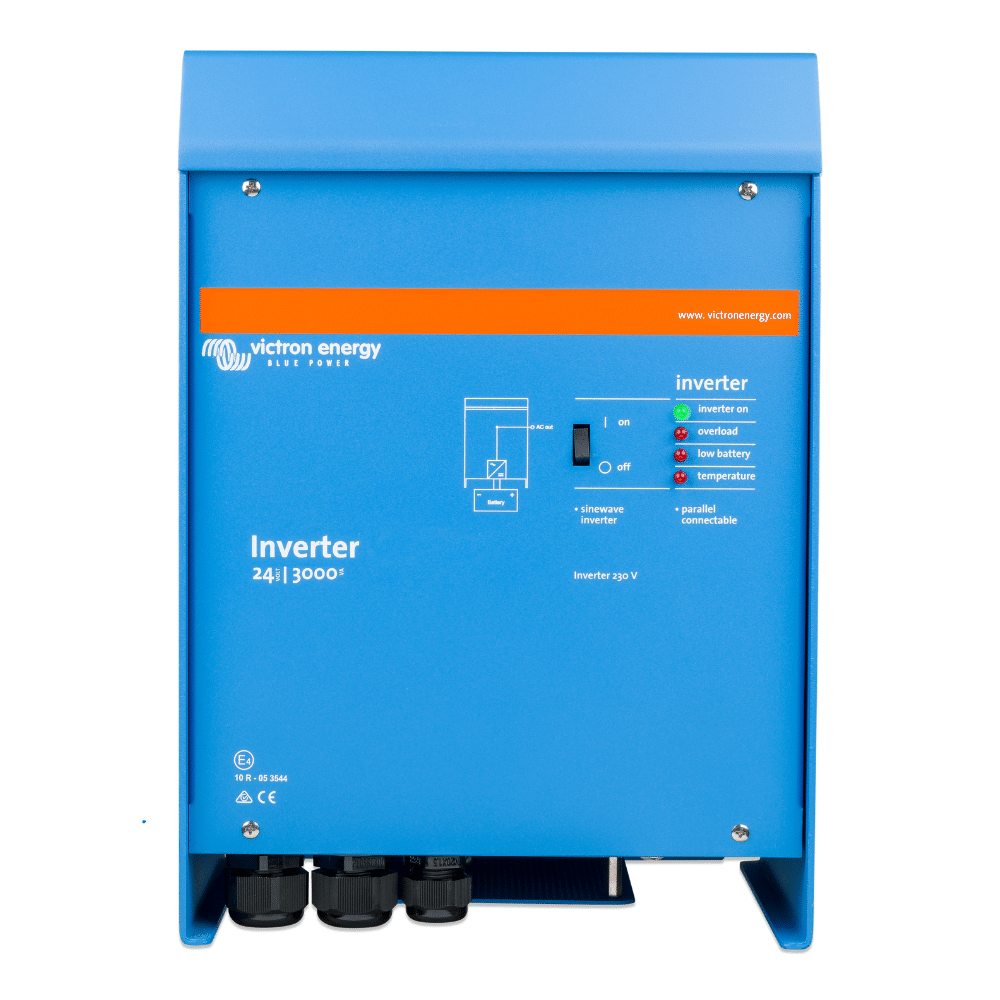

VICTRON ENERGY Phoenix Inverter 24V/3000VA 120V w/VE Bus Port – PIN243020100

Description

VICTRON ENERGY Phoenix Inverter 24V/3000VA 120V w/VE Bus Port – PIN243020100

The Victron Energy Phoenix Inverter 24V/3000VA 120V with VE.Bus Port is a robust and reliable power inverter designed for professional applications. Engineered with advanced SinusMax technology, this inverter provides a pure sine wave output, ensuring seamless power delivery for even the most demanding loads. The hybrid high-frequency technology optimizes efficiency without compromising performance, making it ideal for marine, off-grid, and backup power systems. With exceptional start-up power, parallel and three-phase operation capabilities, and an intuitive communication interface, the Phoenix Inverter is a versatile and dependable choice for any power setup.

Key Features:

• Pure Sine Wave Output: Ensures stable and clean power for sensitive electronics and appliances.

• High Start-Up Power: Capable of handling heavy loads like refrigeration compressors and electric motors.

• Parallel, Three-Phase, and Split-Phase Operation: Expand power output by connecting up to six inverters.

• VE.Bus Communication Port: Enables system integration, remote monitoring, and customization using VictronConnect.

• Advanced Protection System: Guards against short circuits, overloads, and battery voltage fluctuations.

• Compact and Lightweight Design: Optimized dimensions for easy installation in various setups.

• Energy-Saving Modes: Low standby consumption with AES and search modes for maximum efficiency.

• Durable Build Quality: Aluminum enclosure with IP21 protection for long-lasting performance.

The Phoenix Inverter is built with scalability in mind, allowing multiple units to be connected in parallel for increased power output. Whether for mobile applications, remote locations, or backup power solutions, this inverter ensures reliability and flexibility. The integrated VE.Bus port facilitates seamless communication with Victron’s GX devices, enabling real-time monitoring and remote control. Additionally, the programmable relay function can be configured for alarms, generator start/stop, and other automation needs.

This inverter is engineered to provide consistent and uninterrupted power, even in the harshest conditions. With a high efficiency rating of up to 94%, it minimizes energy loss while delivering maximum performance. The rugged design, advanced safety mechanisms, and cutting-edge technology make it an excellent choice for both residential and industrial applications.

Specifications:

• Input Voltage Range: 19 – 33 VDC

• Output Voltage: 120 VAC ±2%

• Frequency: 60 Hz ±0.1%

• Continuous Output Power (25°C): 3000 VA / 2400 W

• Continuous Output Power (40°C): 2200 W

• Continuous Output Power (65°C): 1700 W

• Peak Power: 6000 W

• Maximum Efficiency: 94%

• Zero Load Power Consumption: 20 W (AES mode: 15 W, Search mode: 10 W)

• Operating Temperature Range: -40°C to +65°C

• Humidity (Non-Condensing): Max 95%

• Protection Features: Overload, short circuit, battery over/under voltage, temperature control, input voltage ripple

• Connectivity: VE.Bus port for parallel and three-phase operation, remote monitoring

• Battery Connection: 2+2 M8 bolts

• AC Output Connection: Screw terminals

• Enclosure Material & Color: Aluminum, blue (RAL 5012)

• Protection Category: IP21

• Weight: 18 kg (38 lbs)

• Dimensions: 362 x 258 x 218 mm (14.3 x 10.2 x 8.6 inches)

• Compliance: EN 60335-1, EN 55014-1 / EN 55014-2

The Victron Energy Phoenix Inverter 24V/3000VA is a premium power solution that ensures efficiency, durability, and reliability for a variety of applications. Whether you need power for an off-grid system, backup energy source, or marine use, this inverter delivers exceptional performance with advanced features tailored to meet your energy needs.
