VICTRON ENERGY Phoenix Inverter 12/500 120V NEMA GFCI – PIN125010510

Description

VICTRON ENERGY Phoenix Inverter 12V/500VA 120V NEMA GFCI – PIN125010510

The Victron Energy Phoenix Inverter 12V/500VA 120V NEMA GFCI is a high-quality, pure sine wave inverter designed to provide reliable AC power in various applications, including off-grid, marine, and backup power systems. Featuring full-bridge toroidal transformer technology, this inverter offers superior efficiency and reliability, making it ideal for sensitive electronics and demanding loads. Its pure sine wave output ensures smooth operation for appliances, while its energy-efficient ECO mode helps reduce power consumption when loads are minimal.

Equipped with VE.Direct communication, the Phoenix Inverter allows real-time monitoring and configuration via VictronConnect, offering greater control over its settings. With its compact size, high surge power capacity, and comprehensive safety features, this inverter is a dependable choice for a range of energy needs.

Key Features:

• Pure Sine Wave Output: Provides stable and clean power for sensitive electronic devices.
• High Surge Power Capability: Supports high startup loads for appliances like compressors and power tools.
• VE.Direct Communication Port: Enables easy monitoring and configuration through VictronConnect.
• ECO Mode for Energy Savings: Reduces standby power consumption by shutting down at low loads.
• Remote On/Off Control: Allows external operation via a switch or relay.
• Comprehensive Protection System: Guards against short circuits, overloads, high/low battery voltage, and temperature issues.
• Compact and Durable Design: Steel chassis with plastic cover, lightweight and easy to install.
• GFCI Outlet for Safety: NEMA 5-15R Ground Fault Circuit Interrupter outlet enhances user protection.

The Phoenix Inverter 12V/500VA is designed to be highly efficient, with a peak efficiency rating of up to 90%. It supports both 50Hz and 60Hz operation and allows for adjustable output voltage settings. Its dynamic low-battery cutoff system extends battery life by adjusting shutdown levels based on load demand. Additionally, this inverter is compatible with Victron’s remote monitoring accessories, including Bluetooth connectivity via an optional VE.Direct Bluetooth Smart dongle.

Whether you need a dependable power source for off-grid applications, marine setups, or emergency backup, this inverter delivers consistent AC power in a compact footprint. The optional automatic transfer switch ensures seamless switching between power sources, further enhancing its versatility.

Specifications:

• Input Voltage Range: 9.2 – 17 VDC
• Output Voltage: 120 VAC ±3%
• Frequency: 50Hz or 60Hz ±0.1%
• Continuous Output Power at 25°C: 500 VA / 400 W
• Continuous Output Power at 40°C: 350 W
• Peak Power: 900 W
• Maximum Efficiency: 90%
• Zero Load Power Consumption: 6 W (ECO mode: 1 W)
• Operating Temperature Range: -40°C to +65°C (fan-assisted cooling)
• Humidity (Non-Condensing): Max 95%
• Protection Features: Overload, short circuit, high/low battery voltage, over-temperature, DC ripple
• Connectivity: VE.Direct communication port for monitoring and control

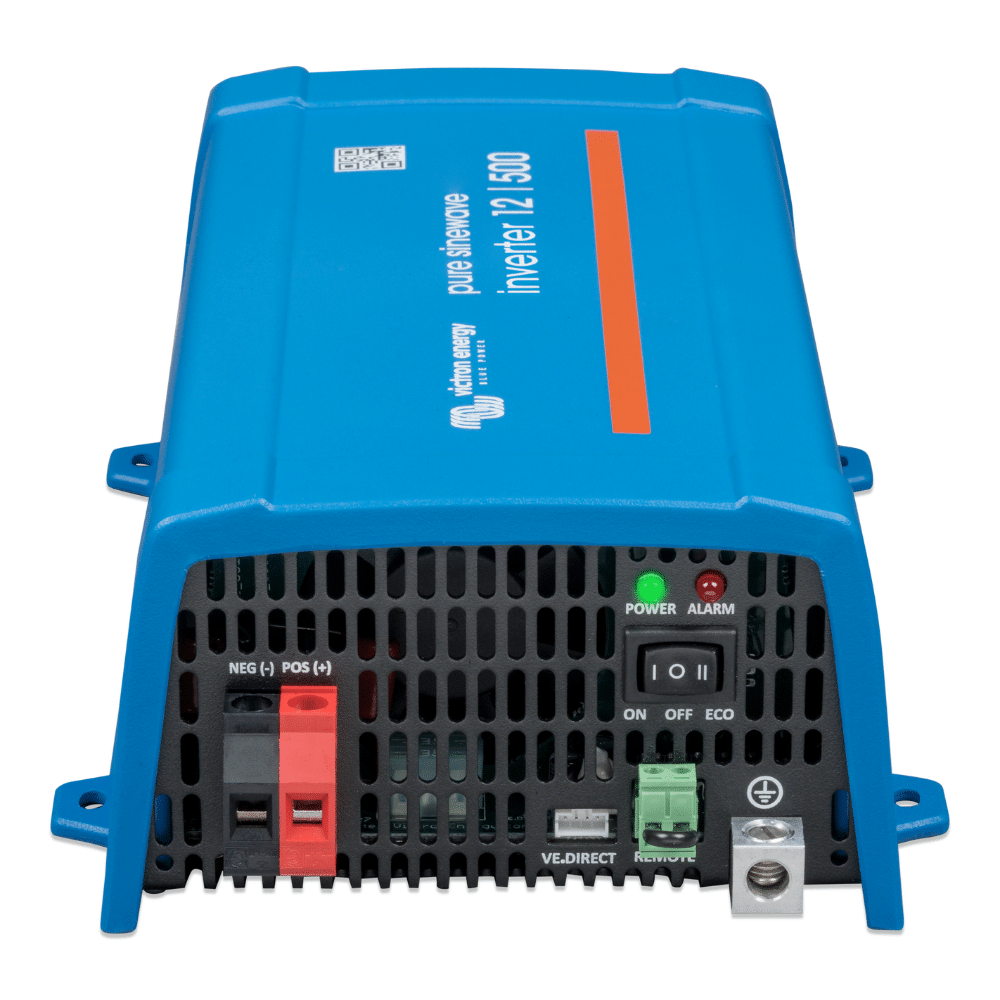

• Battery Connection: Screw terminals (no special tools required for installation)

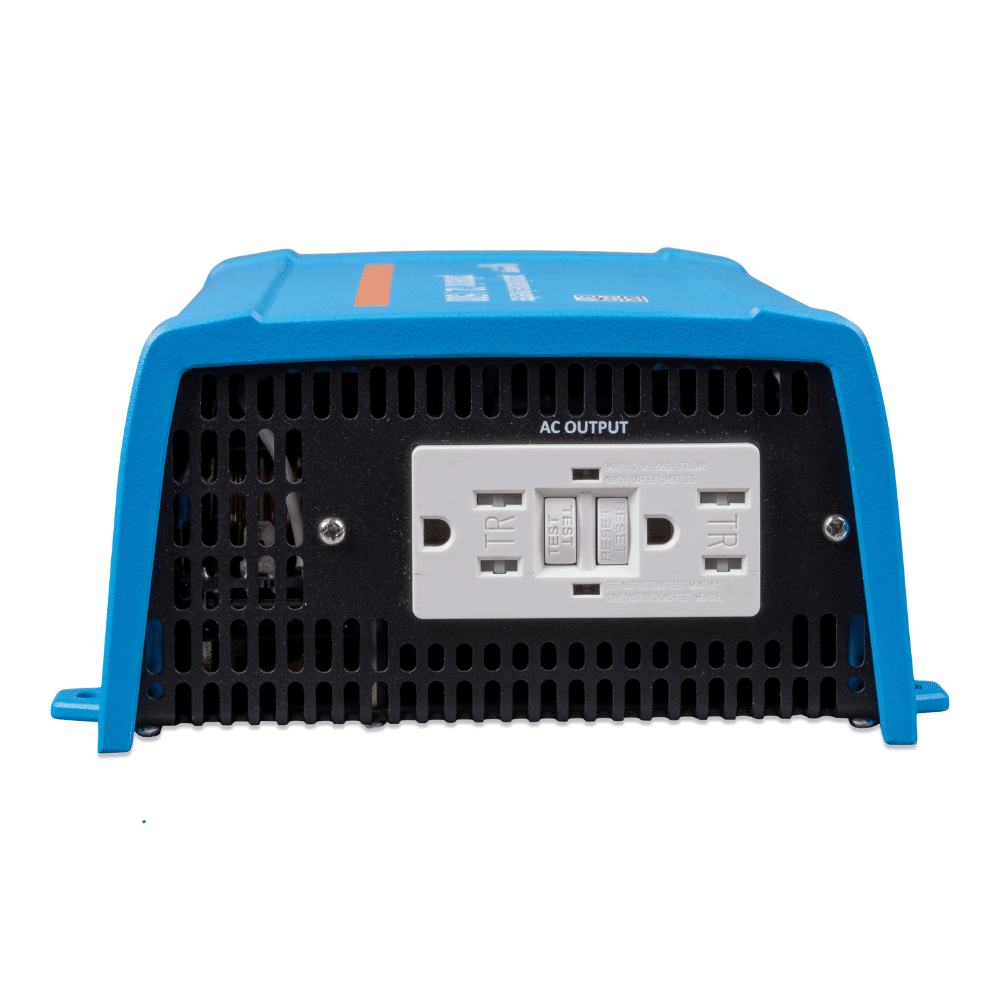

• AC Output Connection: NEMA 5-15R GFCI outlet
• Enclosure Material & Color: Steel chassis with plastic cover, blue (RAL 5012)
• Protection Category: IP21
• Weight: 3.9 kg (8.5 lbs)
• Dimensions: 86 x 172 x 275 mm (3.4 x 6.8 x 10.8 inches)
• Compliance: EN-IEC 60335-1, EN-IEC 62109-1, UL 458

The Victron Energy Phoenix Inverter 12V/500VA 120V NEMA GFCI is an exceptional power solution, offering reliable performance and advanced features in a compact and efficient design. Whether for off-grid power, marine applications, or emergency backup, this inverter ensures uninterrupted power delivery.
