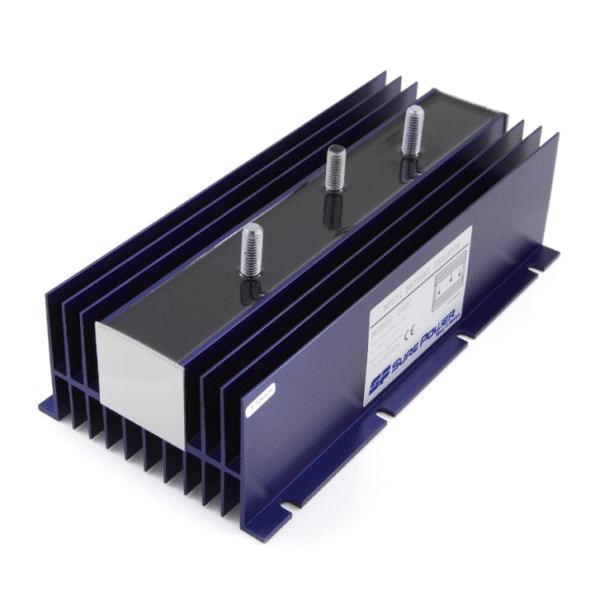

SURE POWER, 200 Amp 1-Alternator / 2-Battery Multi-Battery Isolator – S2002
The Sure Power S2002 Multi-Battery Isolator is a legacy solid-state charging-management device built to distribute alternator output across multiple battery banks while keeping those banks electrically isolated from one another. In a properly matched system, it protects the starting bank from auxiliary loads without requiring the operator to switch batteries manually.
- 200-amp model matched to 1 charging source and 2 battery banks
- Solid-state diode design automatically distributes charging current without manual switching
- Helps prevent battery-to-battery current flow so auxiliary loads do not drain the starting battery
- Designed for negative-ground alternator systems using batteries of the same nominal voltage
- Legacy Sure Power design is rated for full-load operation across demanding mobile and marine environments
Sure Power multi-battery isolators act as one-way electrical check valves between charging sources and battery banks. When the alternator is charging, current is directed to the connected banks; when charging stops, the diode paths help keep the banks electrically isolated. Correct alternator type, cable size, over-current protection and voltage-sensing arrangement should be confirmed before installation.
Specifications
- Manufacturer: Sure Power Industries
- Part Number: S2002
- Product Type: Solid-State Multi-Battery Isolator
- Charging Sources: 1
- Battery Banks: 2
- Current Rating: 200 A
- System Ground: Negative ground
- Battery Requirement: Battery banks of the same nominal voltage
- Terminal Size: 6 mm terminals (legacy catalog)
- Operating Principle: Diode-based automatic charge distribution and load isolation
- Catalog Dimensions: 9 x 4.5 x 3.25 in (22.86 x 11.43 x 8.26 cm)
- Catalog Operating Range: Full rated load from -40°F to +250°F
