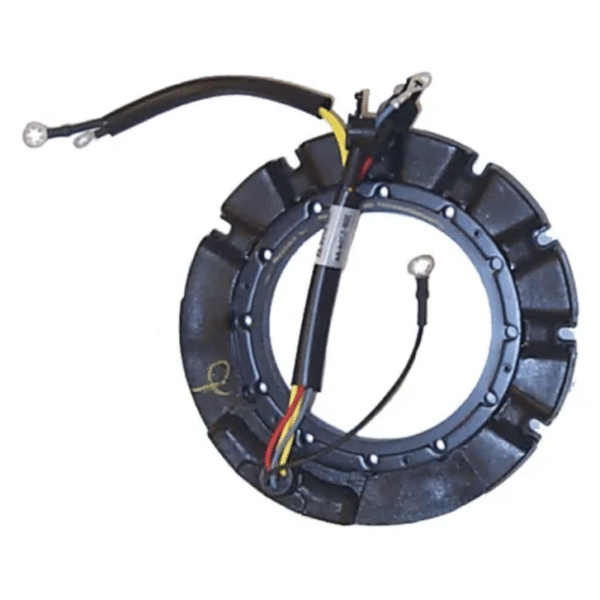

SIERRA 9A Stator for Mercury/Mariner 50-70 HP 3-Cylinder – 18-5865

Description

SIERRA 9A Stator for Mercury/Mariner 50-70 HP 3-Cylinder – 18-5865 is a replacement charging/ignition stator for specified Mercury and Mariner three-cylinder outboards.

The 9-amp stator supplies electrical output used by the engine ignition/charging system on the cataloged 50-70 HP applications.

Key Features

• 9-amp stator output rating
• Fits selected Mercury/Mariner 50-70 HP outboards
• Cataloged for three-cylinder two-stroke engine families
• Restores stator-generated ignition/charging electrical output
• Replaces Mercury 398-5704A2, A5 and A7

Specifications

• Manufacturer Part Number: 18-5865
• Product Type: Stator
• Output Rating: 9 A
• Engine Family: Mercury/Mariner 3-cylinder two-stroke
• Horsepower Range: selected 50-70 HP

Interchange / Cross Reference

• Mercury 398-5704A2
• Mercury 398-5704A5
• Mercury 398-5704A7
• Mallory 9-25506
• CDI 174-5454K1

Match the engine serial range and original stator part number before ordering; electrical returns should be diagnosed before installation.
