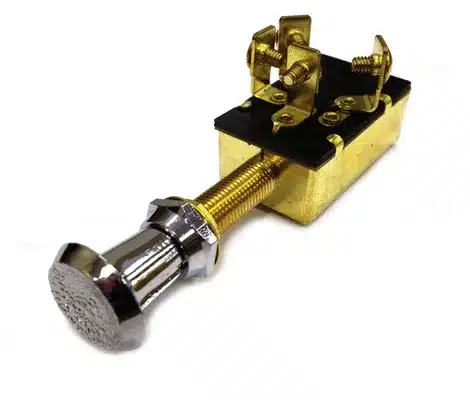

SIERRA Heavy-Duty 3-Position Push-Pull Switch, OFF-ON(1)-ON(2&3) – MP39610
The SIERRA MP39610 is a heavy-duty three-position push-pull switch for marine applications that require staged control of multiple circuits, including anchor/running light arrangements and similar functions. The first pull energizes circuit 1, while the second pull energizes two separate circuits, providing a compact multi-circuit control in one panel switch.
- Three-position OFF-ON(1)-ON(2&3) operation
- First pull energizes circuit 1; second pull energizes separate circuits 2 and 3
- Solid-brass construction with chrome-finish plastic knob
- Rated 15 A at 12 VDC
- 3/8 in mounting bushing, four screw terminals, panels up to 1 in thick
For replacement or new-panel work, match switch function, electrical rating, mounting-stem size, panel thickness and terminal arrangement to the circuit being controlled.
Specifications:
- Switch function: OFF-ON(1)-ON(2&3)
- Circuit type: multi-circuit push-pull
- Rating: 15 A @ 12 VDC
- Mounting bushing: 3/8 in
- Maximum panel thickness: 1 in
- Terminals: 4 screw
- Typical use: anchor/running lights or similar staged circuits
