SIERRA Mercury Water Pump Repair Kit with Housing – 18-3322

Description

SIERRA Mercury Water Pump Repair Kit with Housing – 18-3322

The SIERRA Mercury Water Pump Repair Kit with Housing – 18-3322 is a fitment-specific marine water-pump service component for the cooling-system applications listed below. It is intended for scheduled maintenance or repair of worn pump parts so the engine or drive can maintain dependable raw-water circulation.

• Application-specific water-pump service solution for the engines/drives listed below
• Replaces the applicable OEM/aftermarket references shown in the specifications
• Includes a replacement water-pump housing in addition to service wear components
• Marine-duty replacement components selected for the specified pump configuration
• Verify model, serial number and OEM reference before installation

When servicing the pump, inspect all mating surfaces, seals, grommets, wear plates/cups and the driveshaft or pump shaft. Replace damaged supporting components at the same time to avoid reduced cooling-water output or premature failure.

Specifications

• Manufacturer: SIERRA
• Part Number: 18-3322
• Product Type: Mercury Water Pump Repair Kit with Housing
• Applications: Select Mercury 30 Jet and 35 through 70 HP outboards using OEM 46-77516A3 pump assembly
• Housing-inclusive water-pump service kit

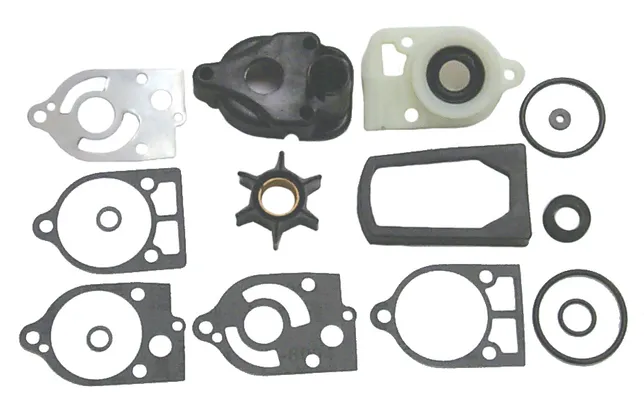

• Contains Sierra 18-3007 impeller, 18-3118 upper housing, 18-3422 base, 18-3107 plate, drain hardware, gaskets and O-rings
• OEM / Aftermarket Interchange:
  • Mallory: 9-48303
  • Mercury Marine: 46-77516A3, 77516A3
• Country of Origin: TW
• HS Code: 84139100
