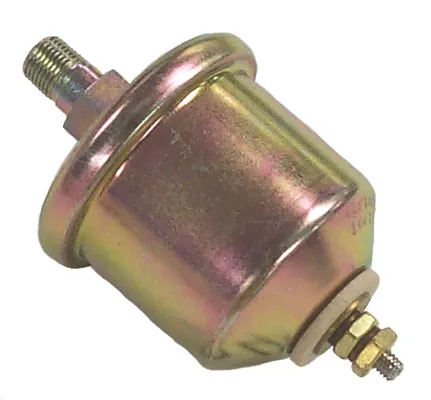

SIERRA 80 PSI Dual-Station Oil Pressure Sender, 1/8-27 NPT – OP24891

Description

SIERRA 80 PSI Dual-Station Oil Pressure Sender, 1/8-27 NPT – OP24891

A dual-station oil-pressure sending unit designed to drive two compatible marine oil-pressure gauges from one engine pressure port.

• Dual-station calibration for two gauges
• 0-80 PSI pressure range
• 1/8-27 NPT pressure port and 10-32 stud terminal
• Sender code C instrumentation calibration
• Resistance curve is calibrated lower than a single-station sender because two gauges are connected

Use only with dual-station-compatible instrumentation. Substituting a single-station sender can cause incorrect readings when two gauges are connected.

Specifications

• Part number: OP24891
• Type: Dual-station oil-pressure sender
• Pressure range: 0-80 PSI
• Thread: 1/8-27 NPT
• Terminal: 10-32 stud
• Sender code: C
• Resistance curve: 120Ω @ 0 PSI; 98Ω @ 10; 77Ω @ 20; 62Ω @ 30; 50Ω @ 40; 45Ω @ 50; 32Ω @ 60; 25Ω @ 70; 17Ω @ 80

Interchange / Replaces

• Datcon: 02504-01
• Faria: 90511
• Medallion: A-2622
• Stewart Warner: 82514
• Veethree/SeaStar: IA15003
• Volvo Penta: 872064
• Marine Power: 0940102
• Crusader: 700403
