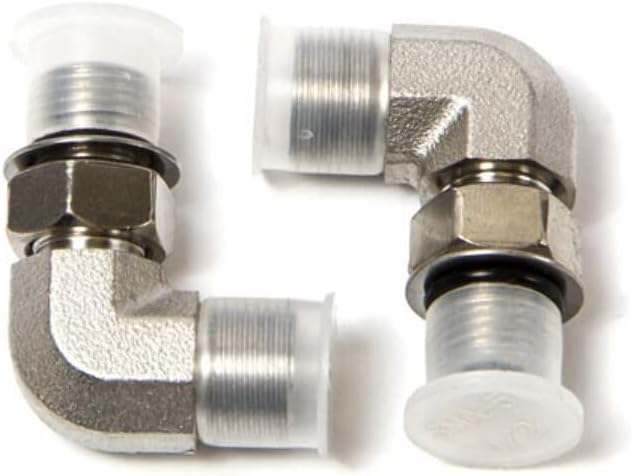

DOMETIC SEASTAR ORB 90 Degree Elbow Fitting Kit – HF6004

Description

DOMETIC SEASTAR ORB 90 Degree Elbow Fitting Kit – HF6004

This Dometic SeaStar hydraulic steering fitting is used when adapting or servicing SeaStar/BayStar systems that use modern O-ring boss (ORB) ports. ORB fittings seal on the O-ring rather than on pipe threads, which allows the fitting to be positioned for a cleaner hose route while helping avoid the port damage that can occur when NPT fittings are forced into -3 style helms or cylinders.

HF6004 is used where the hose needs to exit a helm or cylinder at a 90 degree angle. The elbow shape helps reduce strain in tight dashboards, splashwells, and cylinder areas where a straight fitting would create an aggressive hose bend.

• 90 degree elbow design improves hose routing in tight helm or transom spaces.
• -5 ORB to 3/8 inch tube interface for compatible SeaStar/BayStar hydraulic hose and tube layouts.
• Positionable ORB fitting can be oriented before final tightening to align with the hose path.
• Stainless steel construction resists corrosion in marine steering installations.
• For ORB ports only; not a replacement for older 1/4 inch NPT fittings.

Specifications

• Manufacturer Part Number: HF6004
• Product Type: ORB 90 degree elbow fitting kit
• Connection: -5 ORB x 3/8 inch tube
• Angle: 90 degree elbow
• Material: Stainless steel
• Package Quantity: 2 fittings, per product title and supplier listing
