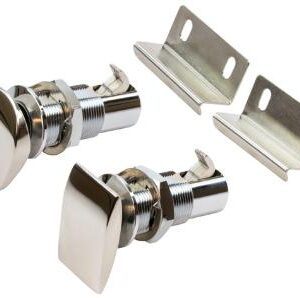

SEA-DOG 316 Stainless Steel Oval Push Button Cabinet Latch – 225400-1

Description

SEA-DOG 316 Stainless Steel Oval Push Button Cabinet Latch – 225400-1

The SEA-DOG 225400-1 combines a cabinet latch and pull handle in one low-profile fitting. Pressing the button releases the catch; when closed, the positive-action mechanism helps keep the cabinet or glove compartment secure while the boat is moving.

• Functions as both a cabinet latch and operating handle
• Positive-action locking mechanism resists accidental opening
• Suitable for left- or right-hand installation
• Constructed with investment-cast 316 stainless steel
• Installs through a single 3/4" mounting hole and includes the catch

What’s in the Box

• 1 push button cabinet latch
• 1 catch

Specifications

• Material: Investment Cast 316 Stainless Steel/Chrome Plated Brass
• Style: Oval
• Dimension A: 1-7/16"
• Dimension B: 15/16"
• Dimension C: 1-11/16"
• Dimension D: 3/4"
• Max Door Thickness: 15/16"
• Manufacturer: SEA-DOG
• Manufacturer Part Number: 225400-1
