SEA-DOG Eye-and-Jaw Swivel, 316 Stainless Steel, 5/16″ – 182208-1

Description

SEA-DOG Eye-and-Jaw Swivel, 316 Stainless Steel, 5/16" – 182208-1

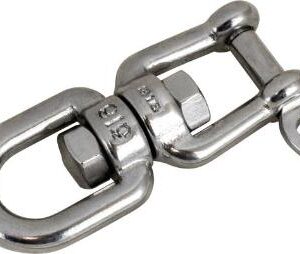

An eye-and-jaw swivel that connects an eye or thimbled line at one end to a clevis-style connection at the other while allowing rotation to reduce twisting in the rigging assembly.

• Nominal size: 5/16"
• Eye connection at one end and removable jaw pin at the other
• Allows connected components to rotate independently
• Investment-cast 316 stainless steel body with 304 stainless steel pin construction
• Designed for compatible marine rigging connections

Important: SEA-DOG does not publish a load rating for its cast stainless-steel swivels.

What’s in the Box

One eye-and-jaw swivel.

Specifications

• Nominal size: 5/16"
• Material: Investment-cast 316 stainless steel body with 304 stainless steel pin
• Dimension A: 3-11/16"
• Dimension B: 5/8"
• Dimension C: 9/16"
• Dimension D: 13/16"
• Manufacturer item weight: 0.34 lb
• Part number: 182208-1
