SEA-DOG 316 Stainless Steel Hatch Hinge with Quick-Release Pin – 205280R

Description

SEA-DOG 316 Stainless Steel Hatch Hinge with Quick-Release Pin – 205280R

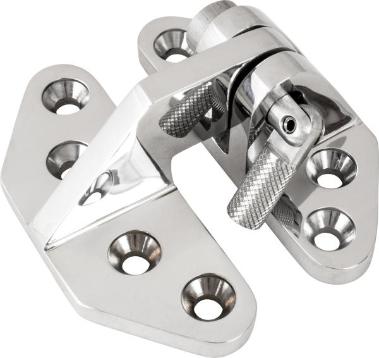

The SEA-DOG 205280R is a 316 stainless steel hatch hinge with quick-release pin designed for a hatch that must separate quickly while still being held upright by an integral stop. Its geometry and mounting pattern are specific to this hinge style, so it should be matched to the door, lid, hatch, or ladder arrangement before drilling.

• Investment-cast 316 stainless steel construction
• Published open footprint approximately 73 x 66.7 mm
• Eight #10 flat-head fasteners; not included
• Quick-release removable pin allows fast separation
• Integral stop supports the hatch in an upright open position
• Supplied as one hinge

What’s in the Box

• 1 hatch hinge

Specifications

• Manufacturer: SEA-DOG
• Part Number: 205280R
• Product Type: 316 Stainless Steel Hatch Hinge with Quick-Release Pin
• Material: Investment-cast 316 stainless steel
• Open Footprint: 73 x 66.7 mm
• Material Thickness: 6.3 mm
• Fasteners: Eight #10 flat-head fasteners; not included
• Quantity: 1 hinge
• Pin Diameter: 6.4 mm (1/4 in)
