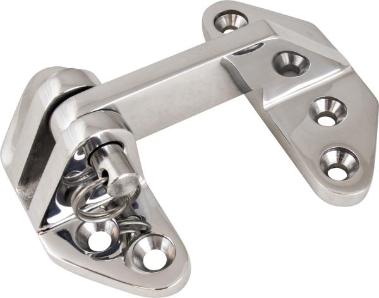

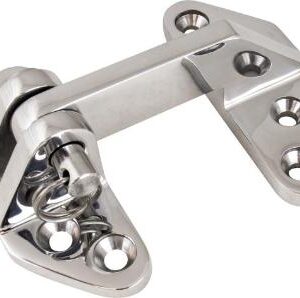

SEA-DOG 3-1/2″ Long-Reach 316 Stainless Steel Hatch Hinge – 205285

Description

SEA-DOG 3-1/2" Long-Reach 316 Stainless Steel Hatch Hinge – 205285

The SEA-DOG 205285 is a 3-1/2" long-reach 316 stainless steel hatch hinge designed for wider doors or hatches that need a greater reach between the mounting points. Its geometry and mounting pattern are specific to this hinge style, so it should be matched to the door, lid, hatch, or ladder arrangement before drilling.

• Investment-cast 316 stainless steel construction
• Published open footprint approximately 88.9 x 73 mm
• Eight #10 flat-head fasteners; not included
• Removable clevis pin with split ring allows easy separation
• Long-reach geometry spans wider hatch or door arrangements
• Supplied as one hinge

What’s in the Box

• 1 long-reach hatch hinge

Specifications

• Manufacturer: SEA-DOG
• Part Number: 205285
• Product Type: 3-1/2" Long-Reach 316 Stainless Steel Hatch Hinge
• Material: Investment-cast 316 stainless steel
• Open Footprint: 88.9 x 73 mm
• Material Thickness: 6.3 mm
• Fasteners: Eight #10 flat-head fasteners; not included
• Quantity: 1 hinge
• Pin Diameter: 6.4 mm (1/4 in)
