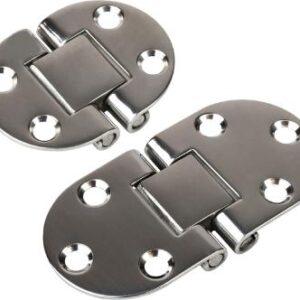

SEA-DOG 3″ x 1-1/2″ Flush Two-Pin Hinge Pair – 201551-1

Description

SEA-DOG 3" x 1-1/2" Flush Two-Pin Hinge Pair – 201551-1

The SEA-DOG 201551-1 is a 3" x 1-1/2" flush two-pin hinge pair designed for folding counters, tables, or doors that need to fold back flat. Its geometry and mounting pattern are specific to this hinge style, so it should be matched to the door, lid, hatch, or ladder arrangement before drilling.

• Stamped 304 stainless steel construction
• Published open footprint approximately 76.2 x 38.1 mm
• Six #8 flat-head fasteners per hinge; not included
• Two-pin geometry opens 180°
• Supplied as a matched pair

What’s in the Box

• 2 hinges

Specifications

• Manufacturer: SEA-DOG
• Part Number: 201551-1
• Product Type: 3" x 1-1/2" Flush Two-Pin Hinge
• Material: Stamped 304 stainless steel
• Open Footprint: 76.2 x 38.1 mm
• Material Thickness: 1.6 mm
• Fasteners: Six #8 flat-head fasteners per hinge; not included
• Quantity: 2 hinges
• Opening Angle: 180°
