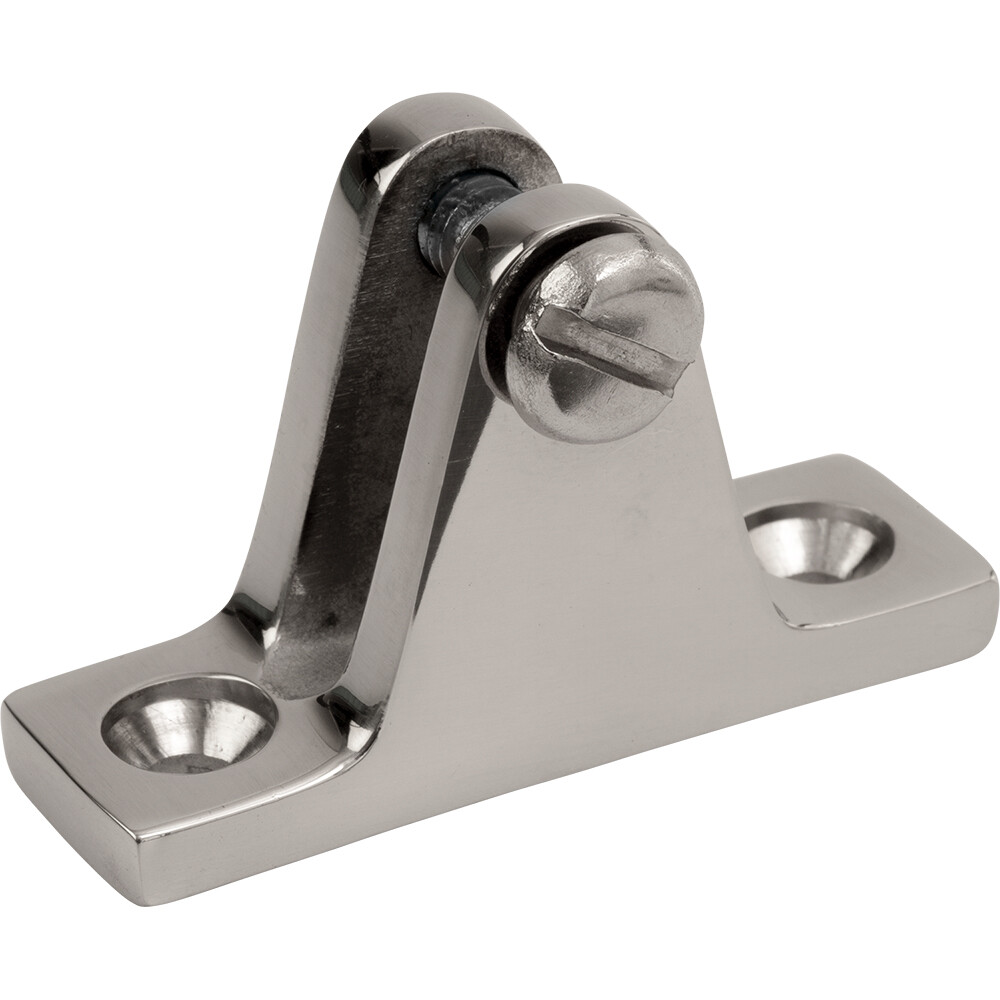

SEA-DOG 316 Stainless Steel 90° Deck Hinge, 3/4 x 2-1/4 in – 270200

Description

SEA-DOG 316 Stainless Steel 90° Deck Hinge, 3/4 x 2-1/4 in – 270200

The SEA-DOG 316 Stainless Steel 90° Deck Hinge, 3/4 x 2-1/4 in provides a surface-mounted pivot point for a Bimini-frame eye end. This model uses a standard horizontal deck hinge, allowing the fitting to match the intended mounting surface while keeping the frame free to pivot during setup and storage.

• Standard horizontal deck hinge
• Base measures 3/4 x 2-1/4 in
• 1/4 in pivot connection
• Installs with two #10 FH fasteners (not included)
• Investment-cast 316 stainless steel for corrosion resistance

What’s in the Box

• One 90° deck hinge with fitted pivot pin

Specifications

• Product type: 90° Deck Hinge
• Base size: 3/4 x 2-1/4 in
• Pivot pin size: 1/4 in
• Replacement pin/screw: 0P27001
• Mounting fasteners: Two #10 FH, not included
• Material: Investment-cast 316 stainless steel
