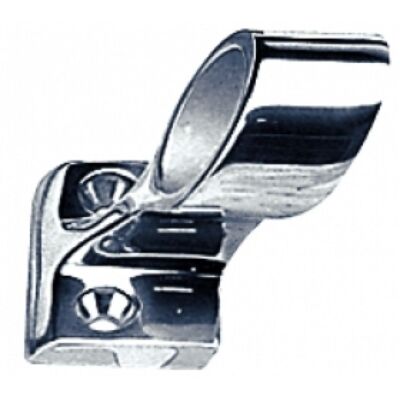

SEA-DOG 316 Stainless Steel 60° Centre Handrail Fitting – Left/Port for 7/8 in Tubing – 285065-1

Description

SEA-DOG 316 Stainless Steel 60° Centre Handrail Fitting – Left/Port for 7/8 in Tubing – 285065-1

The SEA-DOG 316 Stainless Steel 60° Centre Handrail Fitting – Left/Port for 7/8 in Tubing supports a continuous rail section at the base while allowing the tubing to continue through the fitting. It establishes the published 1-13/16 in rail height and secures the tubing with an internal set screw before the base is fastened to the mounting surface. The internal set screw is positioned for a left/port installation.

• Fits 7/8 in outside-diameter handrail tubing
• Rail height: 1-13/16 in
• Supports a continuous rail section at the base while allowing the tubing to continue through the fitting
• Installs with #10 FH fasteners (not included)
• Investment-cast 316 stainless steel with tube-retaining set screw

What’s in the Box

• One 60° centre handrail fitting – left/port
• Tube-retaining set screw

Specifications

• Product type: 60° Centre Handrail Fitting – Left/Port
• Tube outside diameter: 7/8 in
• Rail height: 1-13/16 in
• Mounting fastener: #10 FH, not included
• Material: Investment-cast 316 stainless steel
• Recommended tube wall: 0.049 in
