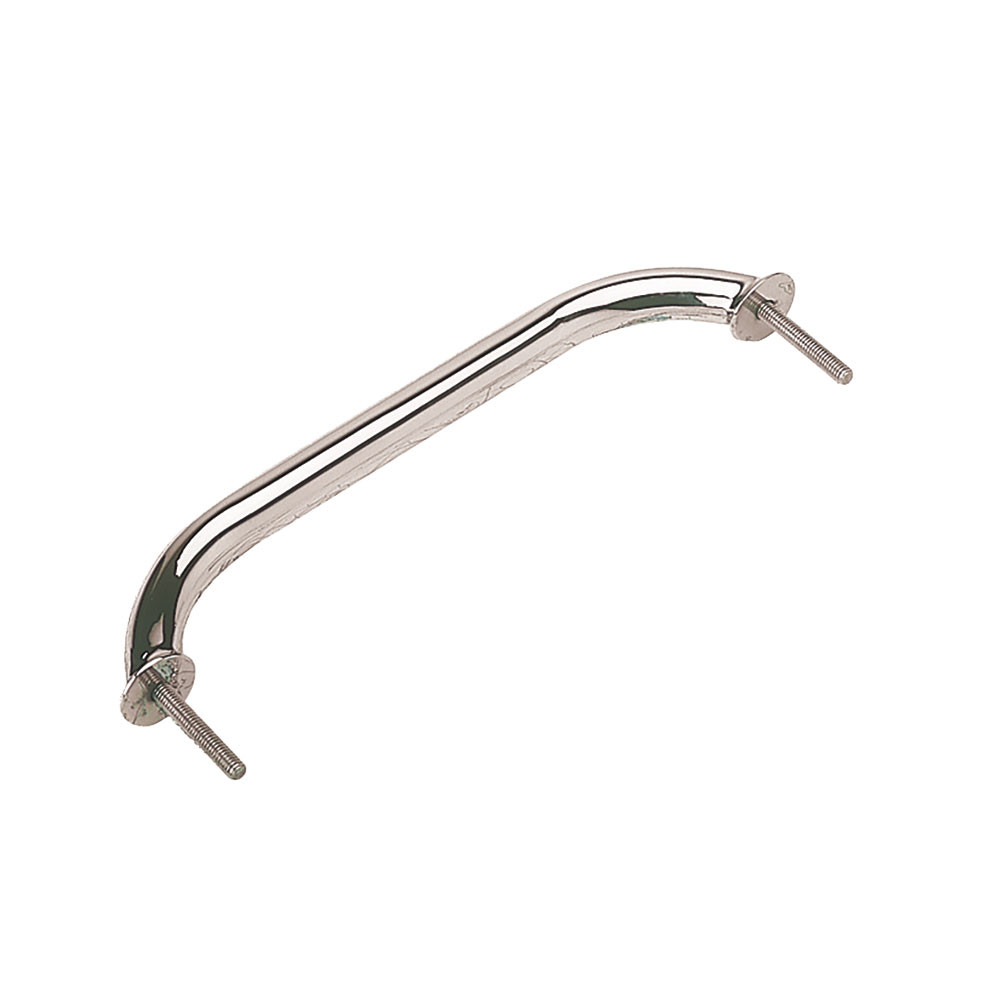

SEA-DOG Stud-Mount Handrail, 304 Stainless Steel, 24″ – 254124-1

Description

SEA-DOG Stud-Mount Handrail, 304 Stainless Steel, 24" – 254124-1

A 24" formed stainless-steel handrail with concealed integral studs for a smooth transition into the mounting surface and no visible top-side fasteners.

• Nominal handrail size: 24"
• Overall length: 24"; mounting-centre spacing: 22-7/8"
• 3/4" outside-diameter tubing
• Integral 5/16"-18 x 1-15/16" threaded studs
• Corrosion-resistant formed 304 stainless steel

What’s in the Box

One stud-mount handrail. Mounting nuts are not included.

Specifications

• Part number: 254124-1
• Product family: Stud-Mount Handrail
• Material: Formed 304 stainless steel
• Dimension A: 24"
• Dimension B: 22-7/8"
• Dimension C: 2"
• Dimension D: 1-1/4"
• Tube outside diameter: 3/4"
• Finish: Stainless
• Recommended fastener: 5/16"-18 Nut
• Manufacturer item weight: 0.8 lb
