SEA-DOG Stud-Mount Handrail, 304 Stainless Steel, 12″ – 254112

Description

SEA-DOG Stud-Mount Handrail, 304 Stainless Steel, 12" – 254112

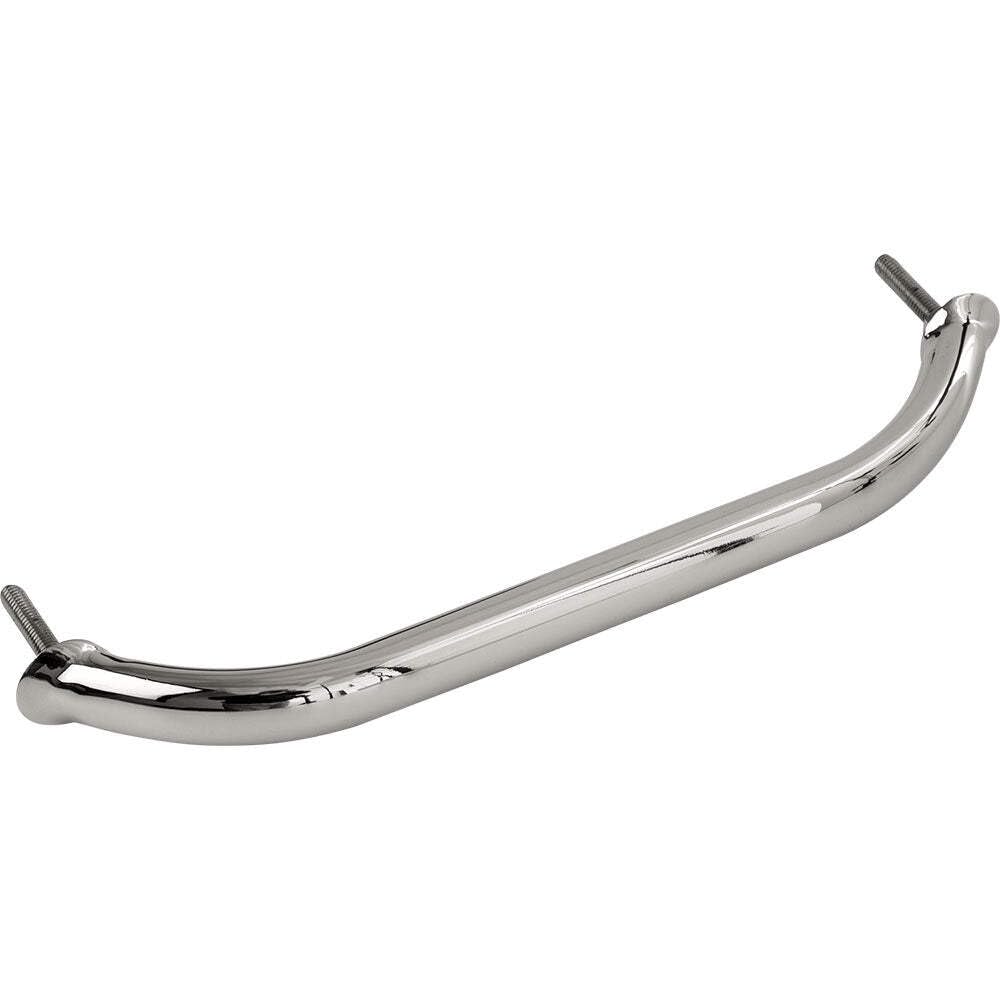

A 12" formed stainless-steel handrail with concealed integral studs for a smooth transition into the mounting surface and no visible top-side fasteners.

• Nominal handrail size: 12"
• Overall length: 12"; mounting-centre spacing: 10-3/4"
• 3/4" outside-diameter tubing
• Integral 5/16"-18 x 1-15/16" threaded studs
• Corrosion-resistant formed 304 stainless steel

What’s in the Box

One stud-mount handrail. Mounting nuts are not included.

Specifications

• Part number: 254112
• Product family: Stud-Mount Handrail
• Material: Formed 304 stainless steel
• Dimension A: 12"
• Dimension B: 10-3/4"
• Dimension C: 2"
• Dimension D: 1-1/4"
• Tube outside diameter: 3/4"
• Finish: Stainless
• Recommended fastener: 5/16"-18 Nut
• Manufacturer item weight: 0.46 lb
