SEA-DOG White Nylon Hinged Jaw Slide with Bolt for 7/8 in Tubing – 273163-1

Description

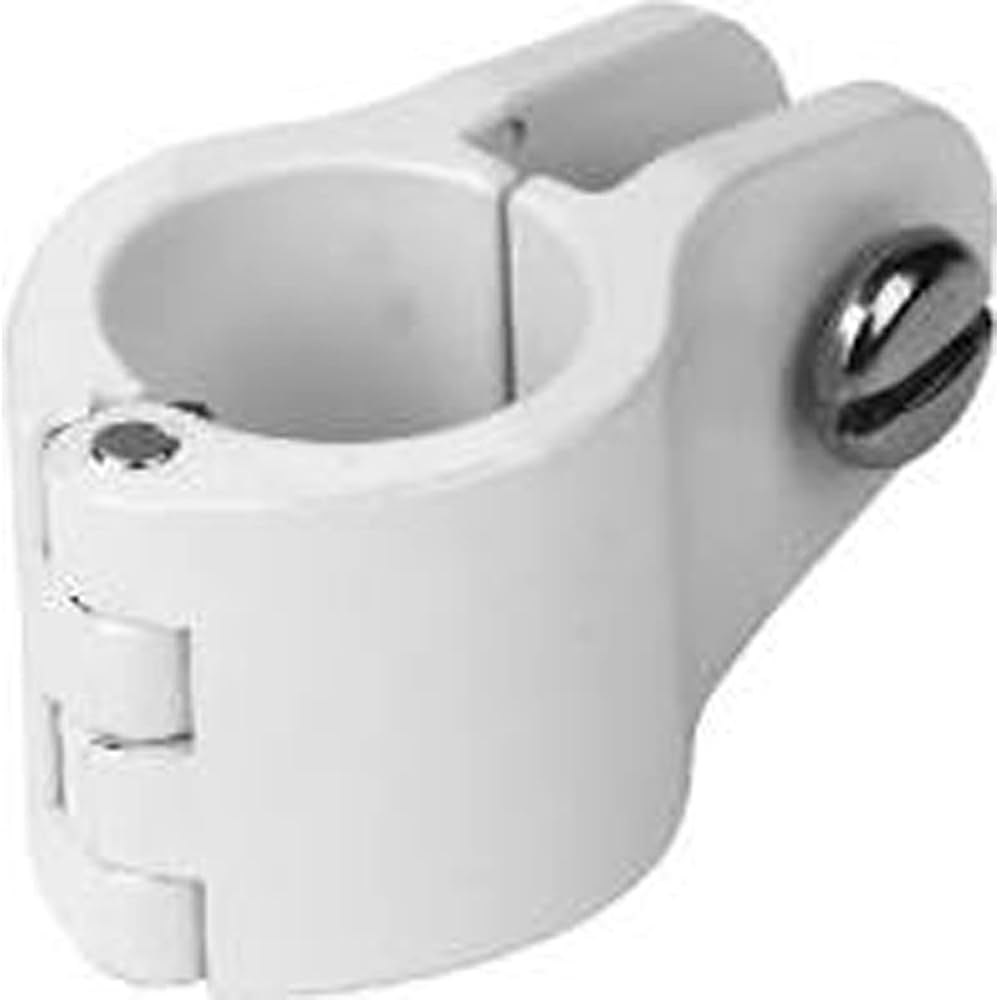

SEA-DOG White Nylon Hinged Jaw Slide with Bolt for 7/8 in Tubing – 273163-1

The SEA-DOG White Nylon Hinged Jaw Slide with Bolt for 7/8 in Tubing secures a Bimini eye end to 7/8 in round support tubing. The hinged bodies open around an installed rail, avoiding the need to remove the tubing. The 1/4 in pivot connection allows the frame bow or support arm to articulate as the top is opened and folded.

• Fits 7/8 in outside-diameter Bimini tubing
• 1/4 in pivot connection
• The hinged bodies open around an installed rail, avoiding the need to remove the tubing.
• UV-resistant injection-moulded nylon
• Supplied as a single hinged slide

What’s in the Box

• One white nylon hinged jaw slide with bolt

Specifications

• Product type: Hinged Jaw Slide with Bolt
• Quantity: Single
• Colour: White
• Tube outside diameter: 7/8 in
• Pivot pin size: 1/4 in
• Replacement screw: 0P27001
• Material: UV-resistant injection-moulded nylon
