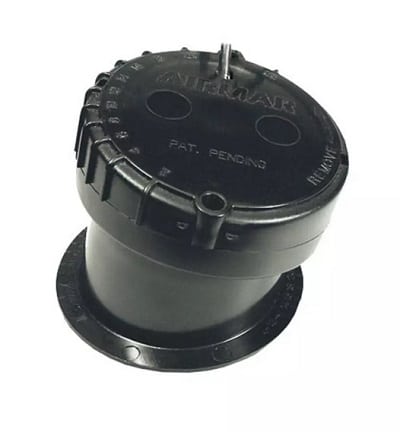

RAYMARINE P79 600 W Adjustable-Angle In-Hull Depth Transducer, 50/200 kHz – E66008

Description

The Raymarine P79 (E66008) is an adjustable in-hull depth transducer designed for boat owners who want traditional 50/200 kHz fishfinder performance without drilling a transducer hole through the hull. The active element sits in a liquid-filled mounting tank bonded inside a solid fiberglass hull and is rotated to compensate for deadrise so the beam points vertically downward.

Main Features

• In-hull installation eliminates external drag and hull protrusion.
• 600 W dual-frequency 50/200 kHz operation for compatible traditional sonar systems.
• Adjustable 2°–22° deadrise compensation keeps the acoustic beam aimed downward.
• 8-pin DSM-style connector connects directly to CP370 and compatible legacy Raymarine sonar modules.
• No water-temperature sensor because the transducer does not contact the water directly.

The P79 is intended primarily for solid fiberglass hulls; cored hull locations must be prepared correctly and should not be treated as a simple shoot-through installation. Its lack of an external housing makes it appealing for fast boats, trailered boats and installations where drag or impact exposure is a concern.

Specifications

• Mount: In-hull
• Power: 600 W
• Frequency: 50 / 200 kHz
• Data: Depth
• Temperature: No
• Deadrise adjustment: Approximately 2°–22°
• Connector: Raymarine 8-pin DSM-style
• Primary compatibility: CP370 and compatible legacy sonar modules
