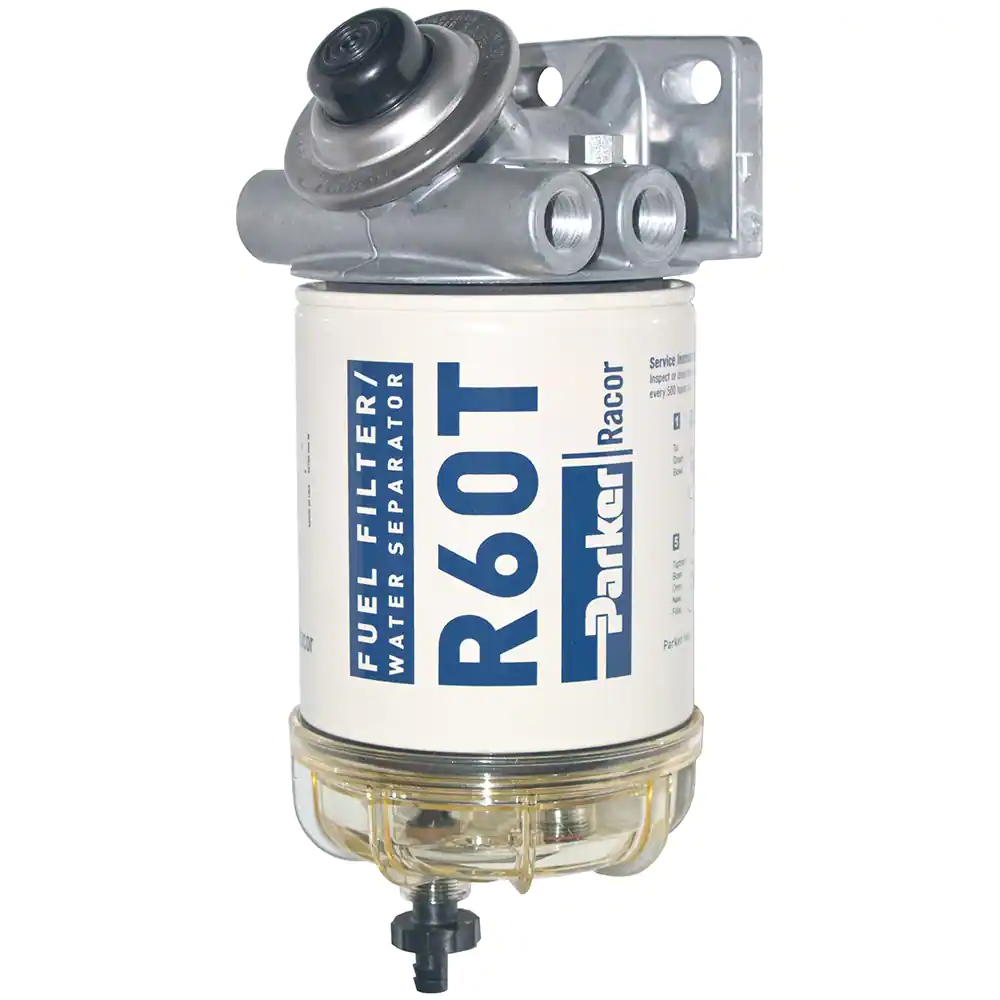

RACOR Fuel Filter Water Separator – Racor Spin-on Series – 460R10

Description

RACOR Fuel Filter Water Separator – Racor Spin-on Series – 460R10.  No matter how carefully gasoline or diesel is handled, contamination in the form of dirt, sludge or water will always find its way into your fuel tank. With modern engines now injecting fuel at over 36,000 psi (2,500 bar) and injector tolerances measured in microns, even a small amount of dirt or water corrosion can cause damaged components, reduced engine efficiency, and in severe cases, complete injector break-down.

• Integral Primer Pump Included:Button Priming Pump (Diesel)
• Bowl Material:Clear Engineering Plastic
• Mounting:Bracket Included
• Part Type:Filter Assembly
• Flow Rate:60 gph (227 lph)
• Product Series:Diesel Spin-on 400
• Heater Power Rating:No Heater
• Bowl Type:Standard, Clear Engineering Plastic
• Micron Rating:98% @ 10 Micron
• Location:North America and EMEA regions
• Port Size:3/4″-16 SAE (SAE J1926)
• Product Type:Diesel Spin-on FF/WS
• Brand:Racor
• For Fluid Type:Diesel
• Clean Pressure Drop:0.39 psi, 2.7 kPa
• Compatible Element:R60S = “2” Micron
  R60T = 10 Micron
  R60P = 30 Micron
• Filter Element Type:10 Micron Aquabloc Spin-on
• Height:11″ / 279 mm
• Width:4.5″ / 114 mm
• Depth:4.8″ / 121 mm
• Weight:2.7 lb / 1.3 Kg
• Head Material:Aluminium Alloy
• Accessories Included:See Product Support Tab
• Maximum Operating Pressure:30 psi / 207 kPa psi
• Number of Ports:2 Inlet / 2 Outlet
• Operating Temperature:-40 to 250°F / -40 to 121°C °F
• Maximum Fluid Temperature:190°F / 88°C °F

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern diesel and gasoline engines by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust. The mounting head and filter body are protected with a durable electrostatically-applied powder coating for superior corrosion resistance. The unique spin-on filter design is easy to service and features a reusable clear plastic or metal contaminant collection bowl with a self-venting drain or metal plug.

An integral priming pump is available as an option for diesel filter models; but they are not recommended for gasoline models. The pump allows for easy priming and simplified service by eliminating messy filter pre-filling and engine hard starting. Diesel models are also available with optional fuel heaters to ensure performance in extremely cold environments.

All Spin-on Series Fuel Filter Water Separators utilize Racor’s high-efficiency Aquabloc® engineered media, which repels water and removes solid contaminants from fuel at 98% efficiency of their micron rating.
