Description

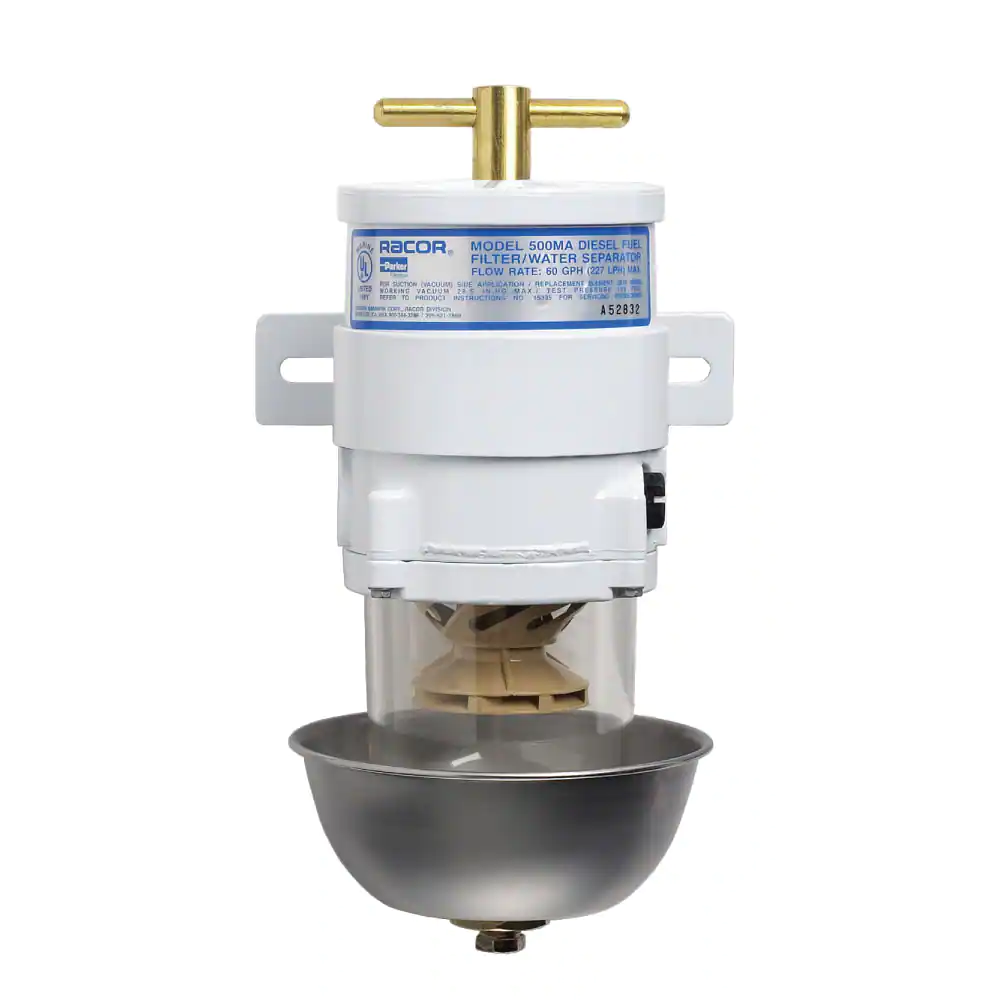

RACOR Marine Fuel Filter Water Separator – Racor Turbine Series – 500MA30. The Racor Marine Fuel Filter Water Separator Turbine Series is the most trusted fuel filter water separator on the market. The UL-approved assembly features a three-stage filtration system that effectively removes water and particulates from fuel, providing maximum protection of diesel engine components in marine applications where reliability is critical.
- Number of Housings:1
- Product Series:500MA
- Valve Type:n/a
- Flow Rate:60 gph (227 lph)
- Connection Type:3/4″-16 UNF-2B SAE Female
- Micron Rating:98% @ 30 Micron
- Materials of Construction:Bowl: Clear Engineering Plastic with Stainless Steel Shield
- Water Sensor Option:n/a
- Brand:Racor
- For Fluid Type:Diesel Fuel / B20
- Mounting Type:Bracket Included
- Clean Pressure Drop:0.02 bar, 0.34 psi
- Pump Type:None
- Number of Ports:2
- Filter Element Type:Top loaded element cartridge with 30 Micron Aquabloc® Media
- Compatible Element:2010TM-OR
- Application:Marine fuel filtration
- Materials of Construction:Powder Coated Aluminum Alloy
- Maximum Continuous Pressure:15 psi / 1.03 bar
- Element Removal Clearance:4 in / 10.2 cm inch
Racor marine fuel filter water separators are available in a wide range of configurations to meet the unique requirements of customer’s engines. All models utilize Racor’s proprietary Aquabloc® filtration elements. Aquabloc® is a unique engineered media that incorporates pleat-spacing corrugations and a graduated pore structure to increase dirt-holding capacity and extend filter life. The media is waterproof and rustproof, capturing contaminants while the specially treated surface separates and coalesces water from the fuel, which causes the water to gather into large droplets that then fall into the clear collection bowl.
