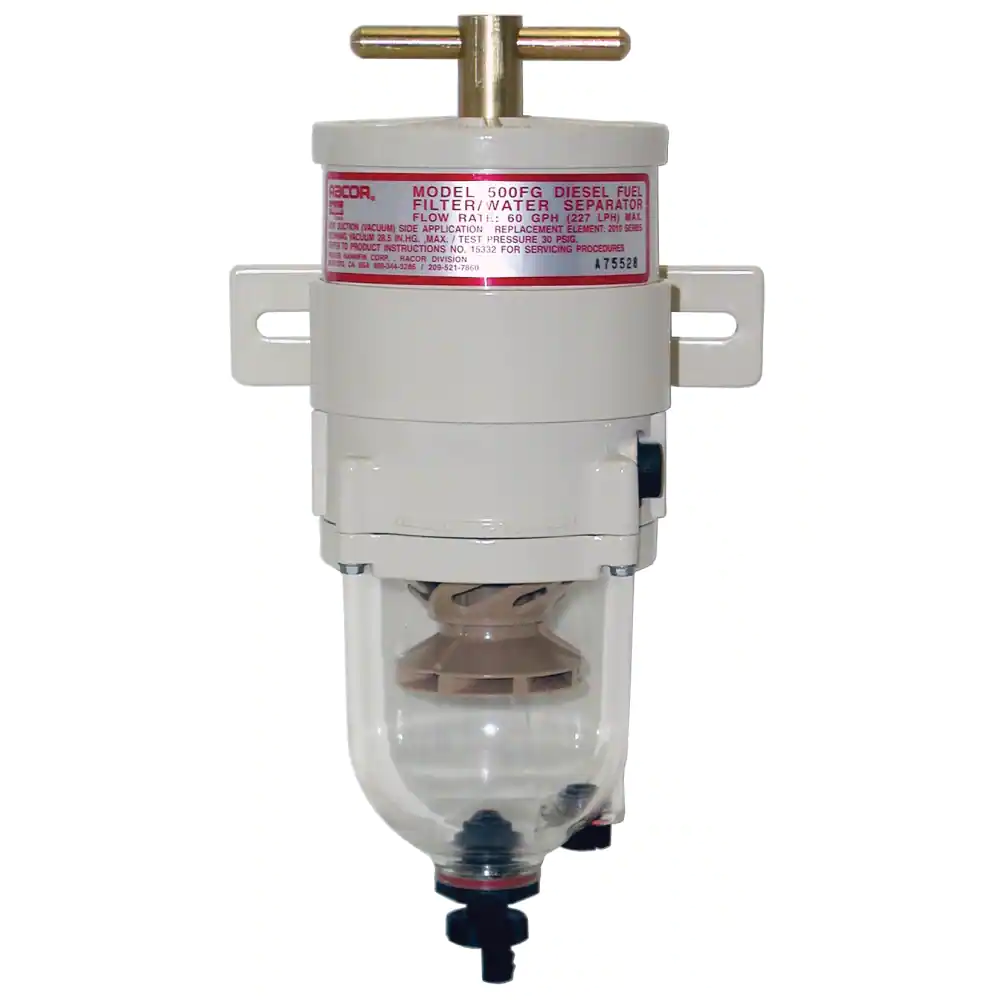

RACOR Fuel Filter Water Separator – Racor Turbine Series (2-mic.) – 500FG-2

Description

RACOR Fuel Filter Water Separator – Racor Turbine Series (2-mic.) – 500FG-2.  The Parker Racor Fuel Filter Water Separator Turbine Series is the most trusted line of fuel filter water separators on the market. The assembly’s three-stage filtration system effectively removes water and particulates from fuel, providing maximum protection of diesel engine components in applications where reliability is critical.

• Flow Rate:60 gph (227 lph)
• Valve Type:n/a
• Connection Type:3/4″-16 UNF-2B SAE Female
• Micron Rating:98% @ 4 Micron
• Heater Power Rating:n/a
• Materials of Construction:Bowl: Clear Engineering Plastic
• Product Series:Cartridge FF/WS, Industrial Turbine
• Brand:Racor
• For Fluid Type:Diesel Fuel / B20
• Mounting Type:Bracket Included
• Number of Housings:1
• Clean Pressure Drop:0.02 bar, 0.3 psi
• Pump Type:None
• Number of Ports:2
• Filter Element Type:Top loaded element cartridge with Aquabloc media.
• Compatible Element:2010SM
• Application:Powergen
  Agricultural Equipment
  Construction Vehicles
  Light, Medium and Heavy Duty Trucks
  Other Diesel Powered equipment
• Water Sensor Option:See Product Support Tab
• Materials of Construction:Power Coated Aluminium Alloy
• Maximum Continuous Pressure:35 psi / 1.03 bar
• Element Removal Clearance:4 in / 10.2 cm inch

To meet the unique requirements of customer’s engines, Racor Turbine Series fuel filter water separators are available in a wide range of configurations. All models utilize Racor’s proprietary Aquabloc® filtration elements. Aquabloc® is a unique engineered media that incorporates pleat-spacing corrugations and a graduated pore structure to increase dirt-holding capacity and extend filter life. The media is waterproof and rustproof, capturing contaminants while the specially treated surface separates and coalesces water from the fuel; causing the water to gather into large droplets that then fall into the clear collection bowl.A
