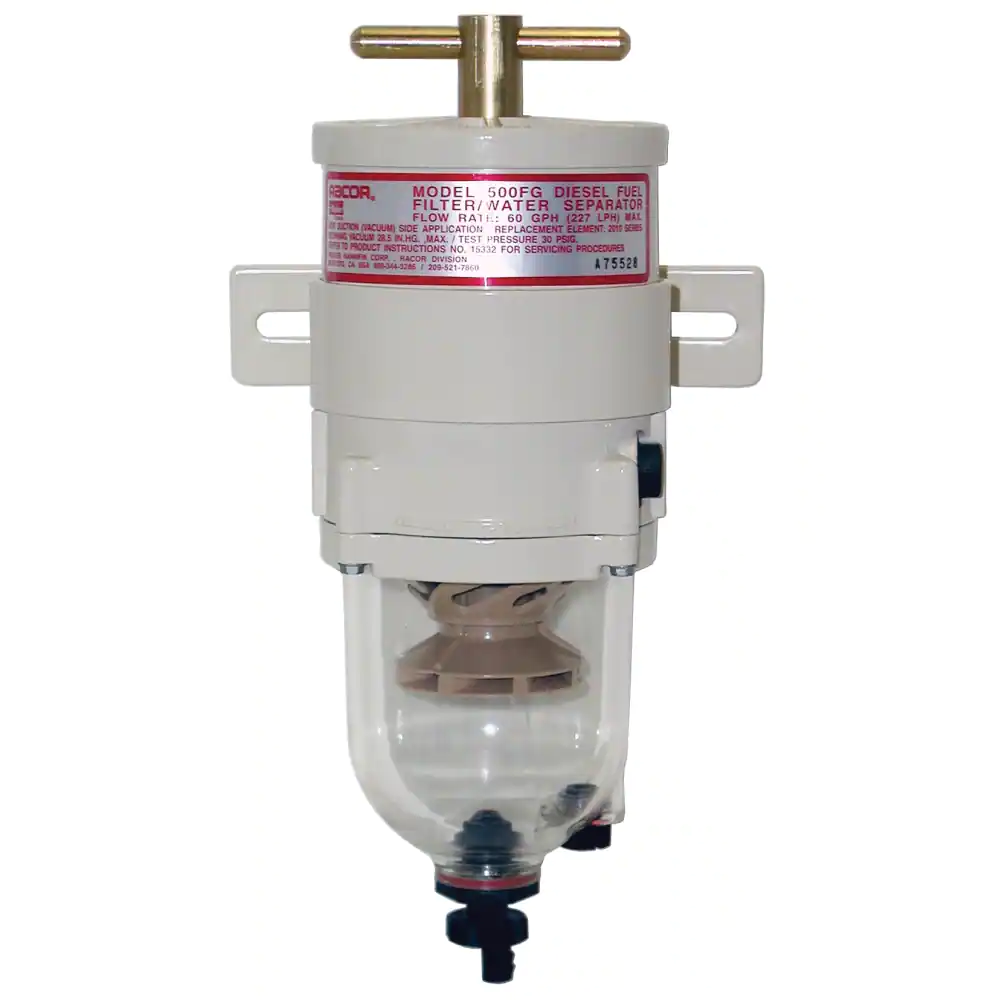

RACOR Turbine Series Fuel Filter/Water Separator (10 Micron) – 500FG-10
The RACOR 500FG-10 Turbine Series fuel filter/water separator is a proven primary filtration system for diesel engines, designed to strip out water and particulate contamination before it reaches sensitive fuel-system components. Its turbine-style design helps spin heavier water droplets and debris out of the fuel stream, while the Aquabloc® element provides final 10-micron filtration.
- 10-micron Aquabloc® element for primary diesel filtration
- Turbine-style separation helps remove free water and heavier contaminants
- Clear collection bowl for quick visual inspection of fuel condition
- Self-venting drain for convenient water and debris removal
- Service-friendly design with recommended top clearance for element changes
Rated for up to 60 GPH (227 LPH), the 500FG housing is commonly used on a wide range of marine and mobile diesel applications. Port fittings are typically sold separately, allowing you to configure the inlet/outlet to suit your installation.
What’s in the Box
- Racor 500FG filter housing assembly
- 10-micron filter element (Element series 2010; 10-micron commonly referenced as 2010TM-OR)
- Clear collection bowl with drain
Specifications
- Micron Rating: 10 micron
- Max Flow Rate: 60 GPH (227 LPH)
- Maximum Head Pressure: 15 psi (1.03 bar)
- Ports (Housing): 3/4”-16 UNF (SAE J1926) (port fittings typically sold separately)
- Service Clearance (Top): 4.0” (10.16 cm) recommended
- Dimensions (Approx.): 11.45” H x 4.15” W x 4.15” D (with bracket: 6.5” W, 5.17” D)
- Dry Weight: 4.0 lb (1.8 kg)
- UPC: Not available (not provided by manufacturer in sourced specs)
- Manufacturer Part Number: 500FG10 (commonly shown without hyphen)
Suggested Shipping (Rough)
- Shipping Weight (Estimate): 5 lb
- Shipping Dimensions (Estimate): 13” x 7” x 6”
