POLYFORM CM-Series Red Mooring Buoy w/S/S Mooring Iron – CM-2 RED S/S

Description

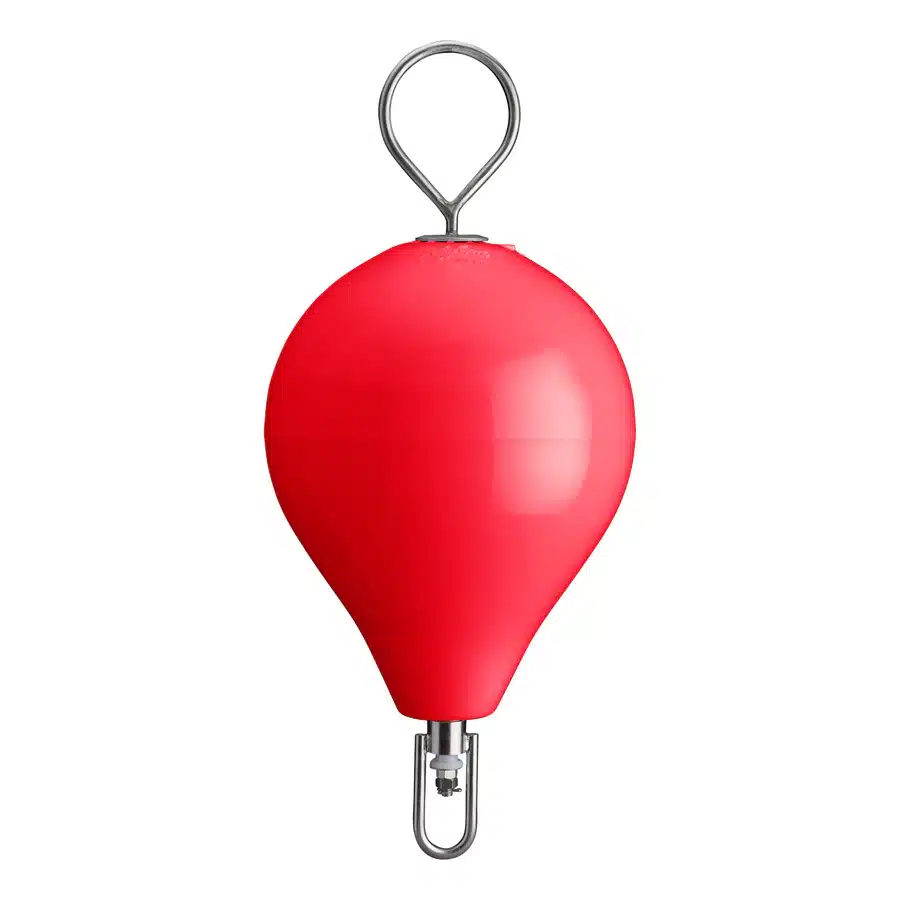

POLYFORM CM-Series Red Mooring Buoy w/S/S Mooring Iron – CM-2 RED S/S

The CM-Series Mooring Buoy is designed to deliver exceptional strength, durability, and reliable boat protection, making it a secure choice for any mooring. Built with a galvanized steel mooring iron and a protective vinyl-coated eye, it offers robust construction for long-lasting performance. Each buoy features a 1/2-inch central rod, a reinforced 4-3/8-inch eye, and a 1-1/2-inch swivel to enhance strength and stability. Widely trusted by boaters around the world, the CM-Series has become a benchmark in mooring buoy design and is available in two color options: red or white with a blue stripe.

Key Features:

• Robust Construction: Galvanized or stainless steel mooring iron with a vinyl-coated eye for superior durability.
• Reinforced Design: Equipped with a large 4-3/8-inch eye and 1-1/2-inch swivel for enhanced strength.
• Boat Protection: Soft vinyl surface prevents damage to boat finishes.
• Reliable Seal: Includes Polyform’s unique vinyl valve for a secure, long-lasting seal.
• Durable Build: Even wall thickness ensures maximum strength and long-term reliability.

Proudly made in the USA, the CM-Series offers unmatched performance and peace of mind.

Model	CM-2
Diameter	13.5 in
Height	18 in
Circumference	42.4 in
Center Tube Diameter	0.625 in
Volume	6.6 gal
Unit Weight	9.2 lb
Height w/Iron	31 in
Max. Chain Weight	41 lb

Mooring Buoy Safety Tips

• In adverse conditions, the holding power of the mooring can be increased by lengthening the mooring pennant. This increases the scope of the mooring providing greater holding power.
• A second mooring pennant can be run to the top eye as a safety in case the primary pennant chafes through or fails.
• Shackles should be moused to prevent opening. Electricians plastic tie wraps are an excellent means of securing a shackle.
• Always use chafing gear where mooring lines run through bow chocks or are likely to contact deck hardware. A thimble on the shackled end will prevent chafe at the buoy.

Mooring Buoys Sizing Guide

To figure out what size buoy you will need, determine the weight of the chain it must support. All chain has a stated weight per foot. Never exceed the maximum chain weight (75% of the buoy’s displacement weight) from the buoy table below. These estimates are for ideal conditions, buoys placed in rougher conditions with strong currents and large tidal swings may require greater buoyancy and a larger size buoy.
