PERKO Black Yellow Towing Navigation Light, Bulb Not Included – 111-M00-BLK

Description

PERKO Black Yellow Towing Navigation Light, Bulb Not Included – 111-M00-BLK

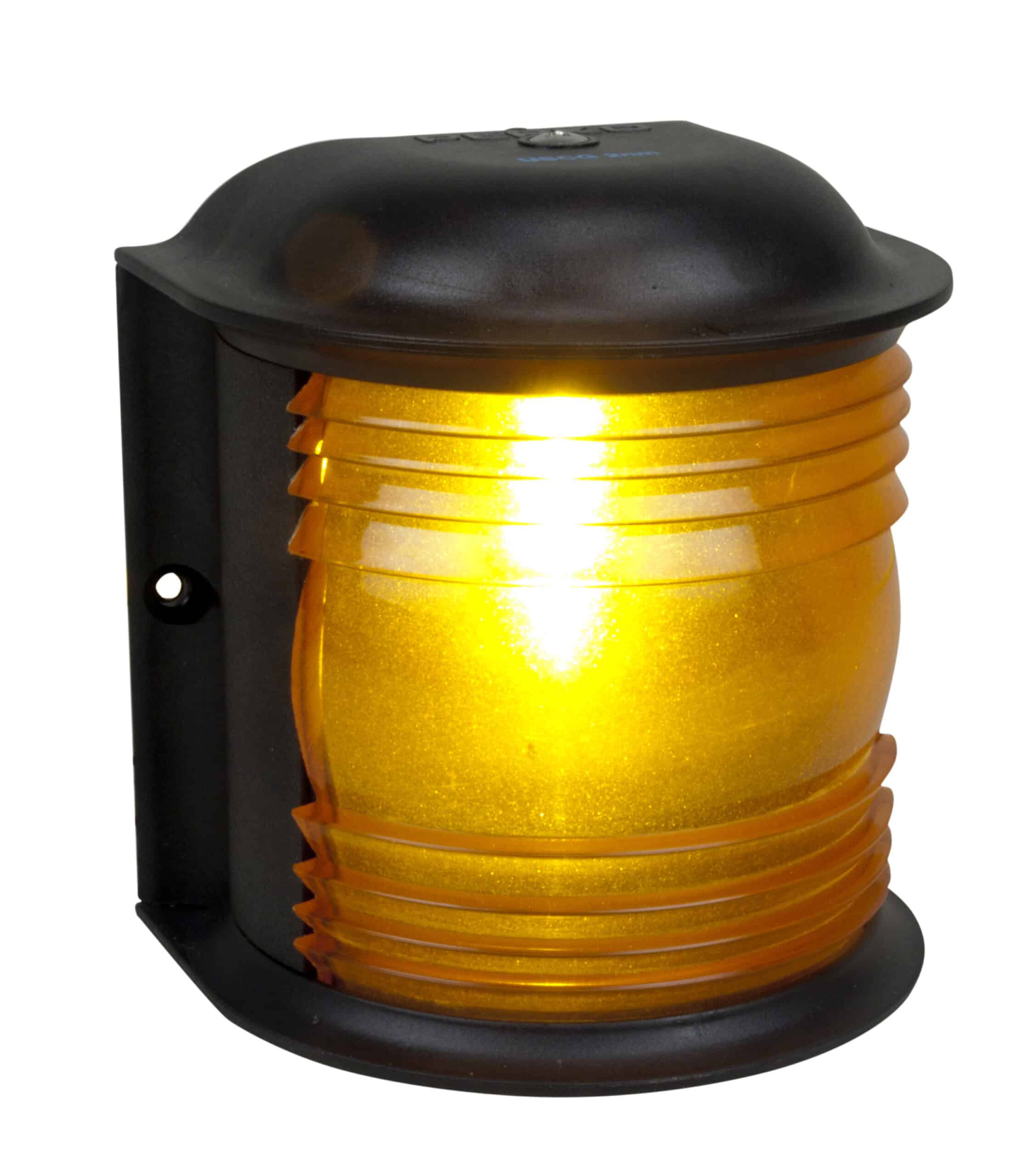

PERKO part 0111M00BLK is a legacy-style incandescent towing fixture designed for power-driven vessels under 20 m (65.6 ft.). The black-polymer housing uses a festoon socket and is serviceable with genuine PERKO bulbs, lenses/globes and related base components.

Key Features

• Yellow lens optical element for the required towing signal
• Certified visibility: 2 nautical miles
• Controlled visibility arc: 135°
• Black polymer housing with serviceable festoon socket
• Bulb is not included, allowing selection for the vessel voltage

Installation and Application

• Mount on a vertical surface perpendicular to the fore-and-aft centreline and use the C/L marking for proper fore/aft alignment.
• Wire in accordance with ABYC E-11 and USCG 33 CFR 183 electrical requirements
• Use cable sized to keep total voltage drop below 0.5V on 12V systems or 1V on 24V systems
• PERKO identifies all 32V versions, and the 24V 0111 stern version, as replacement-only applications for vessels built before June 2019
• Clean only with fresh water and mild detergent

Replacement Parts and Compatibility

• 12V bulb: PERKO 0070DP1CLR, 15W
• 24V bulb: PERKO 0067DP2CLR, 18W
• 32V bulb: PERKO 0070DP2CLR, replacement-use application only
• Replacement lens/globe: PERKO 0269H02YLW

Detailed Selection and Service Information

• Yellow towing light with 135-degree arc and 2-nautical-mile visibility for power-driven vessels under 20 m.
• Black polymer housing measures 133.4 mm high x 120.7 mm wide with 98.4 mm projection.
• Bulb is not included; catalog bulbs are 0070DP1CLR for 12V and 0067DP2CLR for 24V.
• Replacement yellow lens is Figure 0269H02YLW, measuring 108 x 101.6 mm (4-1/4 x 4 in.).

What’s in the Box

• 1 navigation-light fixture
• Bulb not included

Specifications

• PERKO Manufacturer Part Number: 0111M00BLK
• False Creek Fuels SKU: PER-111-M00-BLK
• Figure / Series: 0111
• Light Function: Towing
• Lens / Globe Colour: Yellow lens
• Housing: Black polymer
• Certified Visibility: 2 nautical miles
• Visibility Arc: 135°
• Supported Voltages: 12V or 24V with the specified bulb; 32V replacement applications
• 12V Rating: 15W, 0.97A
• 24V Rating: 18W, 0.75A
• Overall Height: 133.4 mm (5-1/4 in.)
• Fastener Size: #10
• Bulb Included: No
• Replacement Lens / Globe: 0269H02YLW
