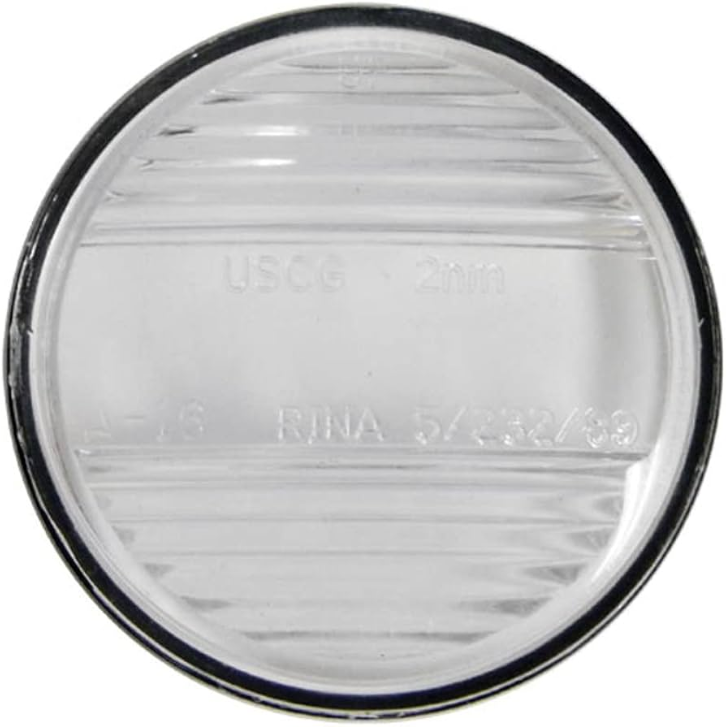

PERKO Replacement Lens with O-Ring for Figure 0946 Flush-Mount Stern Light – 946-DP-99A

Description

PERKO Replacement Lens with O-Ring for Figure 0946 Flush-Mount Stern Light – 946-DP-99A

This factory lens assembly restores the optical cover and seal of the two-mile Figure 0946 stern light without replacing the complete chrome-plated brass or polished stainless fixture.

Product Details

• Fits PERKO Figure 0946 vertical-mount flush stern lights.
• Includes the clear lens and its sealing O-ring.
• The complete fixture is a 12V, 10W, 0.74A stern light certified for two-nautical-mile visibility on vessels under 20 m.
• Figure 0946 has a 76.2 mm (3 in.) outside diameter and 25.4 mm (1 in.) depth.
• Related service parts include bulb 0070DP0CLR, socket assembly 0946DP199B and mounting flange 094600099C.
• Inspect and clean the O-ring groove before installing the new lens; replace hardened or damaged seals.

What’s in the Box

• Clear lens.
• O-ring.

Specifications

• PERKO Manufacturer Part Number: 0946DP099A
• Product Type: Replacement lens with O-ring
• Compatible PERKO Figure: 0946 flush-mount stern light
• Lens Colour: Clear
• Seal: O-ring included
• Related Fixture Voltage / Wattage: 12V / 10W
• Package Quantity: One lens-and-seal assembly
