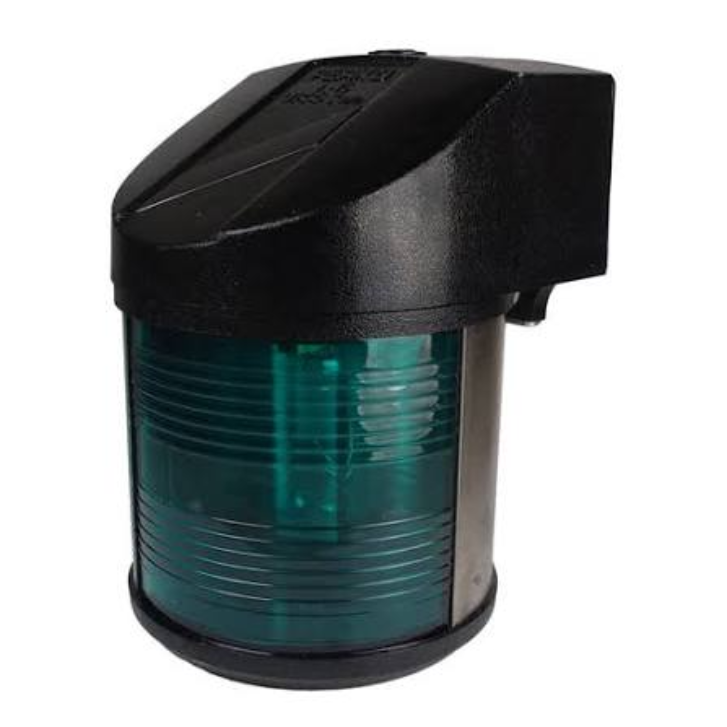

PERKO Black 12V Green Starboard Top-Mount Navigation Light – 200-SDT-DP1

Description

PERKO Black 12V Green Starboard Top-Mount Navigation Light – 200-SDT-DP1

The PERKO Green starboard side light is part of the serviceable incandescent Figure 0200 navigation-light family. It is built for marine identification-light duties where the exact colour, visibility arc, mounting arrangement and certified application must match the vessel.

Product Details

• Green starboard side light with a 112.5 degrees visibility arc and 2 nautical miles published visibility.
• Intended for power-driven vessels under 20 m (65.6 ft.).
• top-mount construction in black polymer; a stainless-steel mounting bracket is included.
• 12V dealer package includes PERKO replacement bulb 037512V25W; published load is 25W and 2.08A at 12V.
• Replacement lens assembly is 0200SDTLNS. The service socket is Figure 0093 for a single light or the lower section of a double-stack light.
• A 24V black version is identified by the DP2 suffix and uses the corresponding 24V PERKO bulb; verify voltage and certification requirements before ordering.
• PERKO currently identifies this top-mount side-light configuration for replacement use; match the certification marking on the existing light before ordering.

Specifications

• PERKO Manufacturer Part Number: 0200SDTDP1
• PERKO Figure / Series: 0200
• Package Format: Retail dealer package – 1 light per card
• Product Type: Green starboard side light
• Light Colour: Green
• Mounting Style: Top-Mount
• Housing Material / Finish: Black polymer
• Voltage: 12V DC
• Bulb: 037512V25W, included
• Power / Current: 25W; 2.08A at 12V
• Visibility Arc: 112.5 degrees
• Visibility: 2 nautical miles
• Vessel Application: power-driven vessels under 20 m (65.6 ft.)
• Overall Dimensions: 122.2 mm high x 84.1 mm outside diameter x 84.1 mm projection (4-13/16 x 3-5/16 x 3-5/16 in.)
• Mounting Fasteners: #10
• Replacement Lens Assembly: 0200SDTLNS
• Replacement Socket: PERKO Figure 0093
