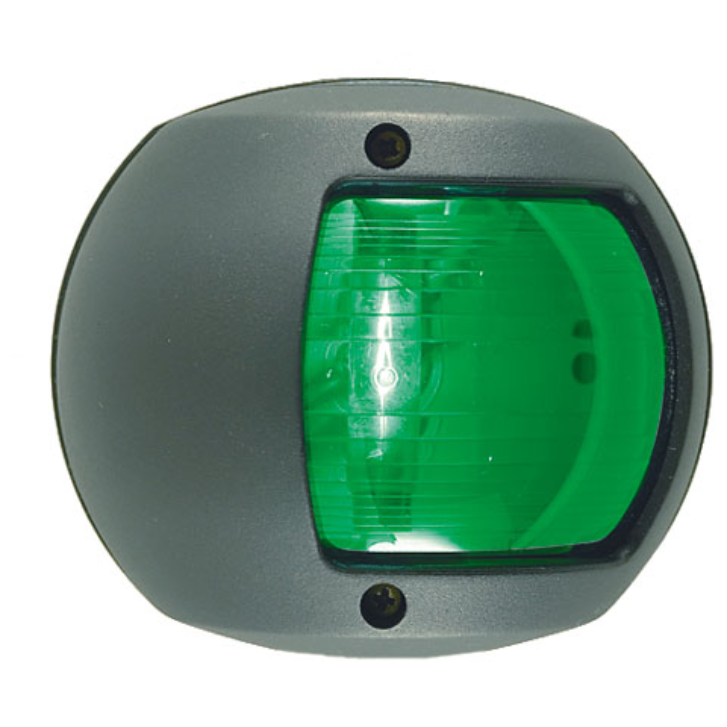

PERKO Black 12V Green Starboard Side Navigation Light, 2 NM – 170-BSD-DP1

Description

PERKO Black 12V Green Starboard Side Navigation Light, 2 NM – 170-BSD-DP1

PERKO part 0170BSDDP1 is a complete 0170 Series surface-mount navigation light for vessels under 20 m (65.6 ft.). This DP1 version is the 12V model and includes the correct PERKO bulb. The serviceable lens assembly and bulb allow the fixture to be maintained without replacing the entire light.

Key Features

• Green optical element for starboard side service
• Certified visibility: 2 nautical miles
• Visibility arc: 112.5°
• Black polymer housing
• 12V 15W bulb included
• Certified for the stated function on sail or power vessels under 20 m

Installation and Application

• Mount accurately vertical on the starboard side, in the same thwartship plane and at the same height as the port light, at least 1 m below the masthead light.
• Use only round-head or pan-head #10 screws; PERKO specifically warns not to use countersunk screws
• Use a minimum conductor size of 1.5 mm² (16 AWG) and limit total 12V voltage drop to 0.5V
• Fit the supplied silicone sleeves over the conductors and keep connections clear of the bulb
• Clean only with fresh water and mild detergent

Replacement Parts and Compatibility

• 12V replacement bulb: PERKO 0070DP1CLR
• 24V version uses PERKO 0067DP2CLR
• Replacement lens and shield assembly: PERKO 0170BSDLNS
• The 0170 Series superseded corresponding older 0120 Series lights

Detailed Selection and Service Information

• Black-polymer green starboard side light with 112.5-degree arc and 2-nautical-mile visibility.
• Published fixture size is 92.1 mm high x 104.8 mm wide x 57.2 mm projection with #10 fasteners.
• DP1 identifies the 12V package with 15W bulb; replacement bulb is 0070DP1CLR and lens/shield assembly is 0170BSDLNS.
• OEM/standard 12V package equivalent is 0170BSD12V.

What’s in the Box

• 1 complete 0170 Series navigation-light fixture
• 1 installed 12V 15W bulb

Specifications

• PERKO Manufacturer Part Number: 0170BSDDP1
• False Creek Fuels SKU: PER-170-BSD-DP1
• Series: 0170
• Voltage: 12V DC
• Light Function: Starboard side
• Lens Colour: Green
• Housing: Black polymer
• Certified Visibility: 2 nautical miles
• Visibility Arc: 112.5°
• Power: 15W
• Current Draw: 0.97A
• Overall Size: 92.1 x 104.8 mm (3-5/8 x 4-1/8 in.)
• Projection: 57.2 mm (2-1/4 in.)
• Fastener Requirement: #10 round-head or pan-head; do not use countersunk
• Included Bulb: 0070DP1CLR
• Replacement Lens Assembly: 0170BSDLNS
• Application: Certified for the stated function on sail or power vessels under 20 m
