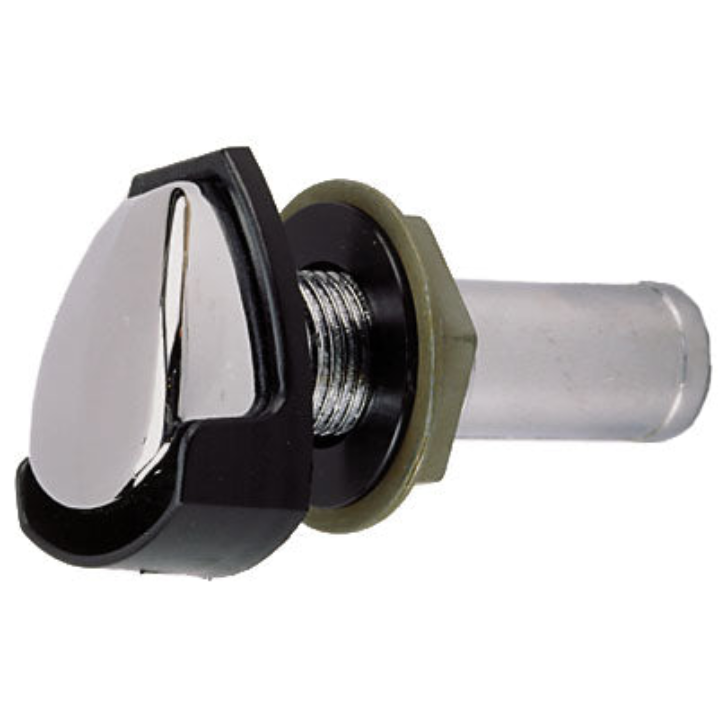

PERKO Gasoline Fuel-Tank Vent, 5/8 in. hose, Straight Hose Barb – 506-DP4-CHR

Description

PERKO Gasoline Fuel-Tank Vent, 5/8 in. hose, Straight Hose Barb – 506-DP4-CHR

This fuel-tank vent provides atmospheric venting for a gasoline tank while helping block flame propagation through the vent opening. Its removable screen allows inspection and cleaning during routine fuel-system maintenance.

Product Details

• Chrome-plated zinc-alloy body with black splash guard.
• Straight Hose Barb connection for 5/8 in. hose.
• Removable 30-mesh stainless-steel wire screen functions as a flame arrestor for gasoline applications.
• Designed to meet the cited USCG gasoline fuel-system requirements of 33 CFR 183.
• Maximum hull thickness is 19.1 mm (3/4 in.).
• Keep the vent opening clear, route the vent line continuously upward where practical and pressure-test the completed fuel system.

Specifications

• PERKO Manufacturer Part Number: 0506DP4CHR
• Product Type: Fuel-tank vent
• Connection: 5/8 in. hose
• Body Configuration: Straight Hose Barb
• Material and Finish: Chrome-plated zinc-alloy body with black splash guard
• Splash-Guard Colour: Black
• Maximum Hull Thickness: 19.1 mm (3/4 in.)
• Screen: Removable 30-mesh stainless steel
• Gasoline Flame Arrestor: Yes
• Standard: USCG gasoline fuel systems, 33 CFR 183
