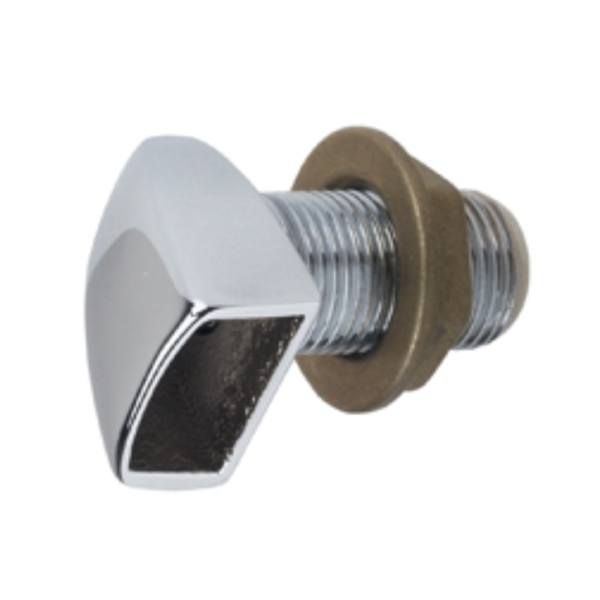

PERKO Chrome-Plated Bronze 1/2 in. NPT Gas Tank Vent with Flame Arrestor – 515-DP4-CHR

Description

PERKO Chrome-Plated Bronze 1/2 in. NPT Gas Tank Vent with Flame Arrestor – 515-DP4-CHR

This threaded tank vent provides a compact exterior breathing point for a gasoline fuel system using a 1/2 in. NPT pipe connection. The serviceable screen helps prevent flame propagation while allowing the vent path to be inspected and cleaned.

Product Details

• Threaded for a 1/2 in. NPT connection.
• Chrome-plated bronze body for durable marine service.
• Removable 30-mesh stainless-steel wire screen functions as a flame arrestor for gasoline applications.
• Accommodates hull thickness up to 15.9 mm (5/8 in.).
• Designed to meet the cited USCG gasoline fuel-system requirements of 33 CFR 183.
• Mount where the opening will remain unobstructed and where discharged vapour or fuel cannot enter the vessel.

Specifications

• PERKO Manufacturer Part Number: 0515DP4CHR
• Product Type: Threaded gasoline fuel-tank vent
• Material: Bronze
• Finish: Chrome plated
• Pipe Connection: 1/2 in. NPT
• Maximum Hull Thickness: 15.9 mm (5/8 in.)
• Flame Arrestor: Removable 30-mesh stainless-steel screen
• Compliance Reference: USCG gasoline fuel-system requirements, 33 CFR 183
