Description

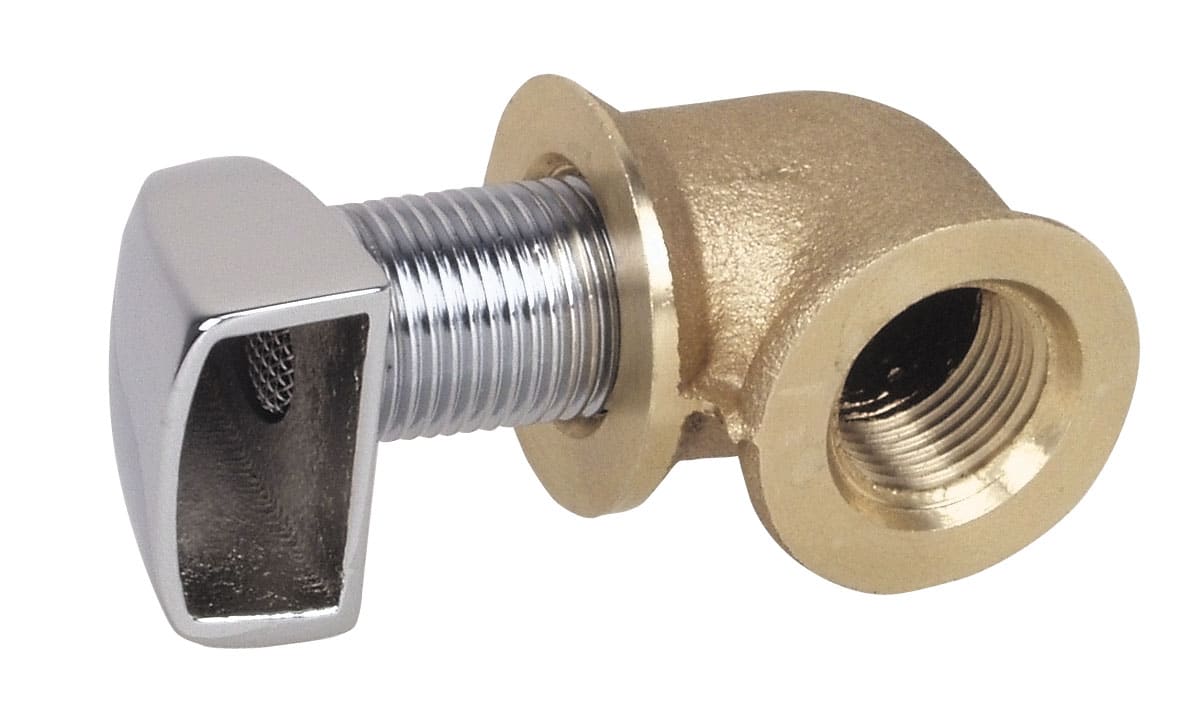

PERKO Gasoline Fuel-Tank Vent, 1/2 in. NPT, Threaded Pipe – 503-DP4-CHR
This fuel-tank vent provides atmospheric venting for a gasoline tank while helping block flame propagation through the vent opening. Its removable screen allows inspection and cleaning during routine fuel-system maintenance.
Product Details
- Chrome-plated bronze body.
- Threaded Pipe connection for 1/2 in. NPT.
- Removable 30-mesh stainless-steel wire screen functions as a flame arrestor for gasoline applications.
- Designed to meet the cited USCG gasoline fuel-system requirements of 33 CFR 183.
- Maximum hull thickness is 22.2 mm (7/8 in.).
- Keep the vent opening clear, route the vent line continuously upward where practical and pressure-test the completed fuel system.
Specifications
- PERKO Manufacturer Part Number: 0503DP4CHR
- Product Type: Fuel-tank vent
- Connection: 1/2 in. NPT
- Body Configuration: Threaded Pipe
- Material and Finish: Chrome-plated bronze body
- Splash-Guard Colour: None
- Maximum Hull Thickness: 22.2 mm (7/8 in.)
- Screen: Removable 30-mesh stainless steel
- Gasoline Flame Arrestor: Yes
- Standard: USCG gasoline fuel systems, 33 CFR 183
