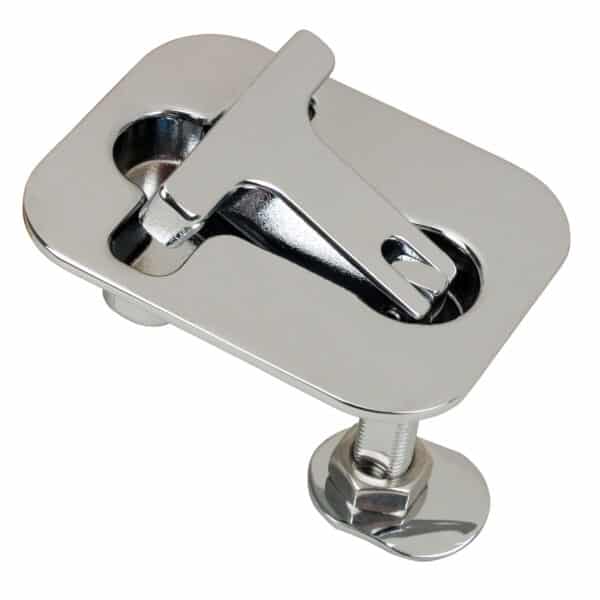

PERKO Chrome-Plated Bronze Flush Hatch Dog, 15/16 in. Cam Bar – 777-000-CHR

Description

PERKO Chrome-Plated Bronze Flush Hatch Dog, 15/16 in. Cam Bar – 777-000-CHR

This flush hatch dog secures a deck hatch without a protruding handle. The cam pulls the hatch tightly against its seal, while the internal O-rings improve water resistance and help eliminate rattling when dogged down.

Product Details

• Bronze construction with chrome-plated finish and stainless-steel lock nuts.
• Latch version with visible mounting holes and a flush strike.
• Face plate measures 96.8 x 76.2 mm (3-13/16 x 3 in.).
• 15/16-inch cam bar provides the shortest option in the Figure 0777 family.
• Cam-bar adjustment range is 31.8 to 50.8 mm (1-1/4 to 2 in.).
• O-ring seals improve water resistance, and the mechanism is designed not to rattle when tightened.
• Replacement cam bar: 077700099A.

Specifications

• PERKO Manufacturer Part Number: 0777000CHR
• Product Type: Flush hatch dog
• Function: Latch
• Mounting Style: Visible fasteners
• Material: Bronze with stainless-steel lock nuts
• Finish: Chrome plated
• Face-Plate Dimensions: 96.8 x 76.2 mm (3-13/16 x 3 in.)
• Cam-Bar Length: 23.8 mm (15/16 in.)
• Cam Adjustment Range: 31.8 to 50.8 mm (1-1/4 to 2 in.)
• Maximum Hatch-Thickness Range: Up to 50.8 mm (2 in.)
• Mounting Fasteners: #8 screws
• Replacement Cam Bar: 077700099A
