PERKO 1 in. Cast-Bronze Cockpit Scupper with Check Ball and 45° Outlet – 142-001-PLB

Description

PERKO 1 in. Cast-Bronze Cockpit Scupper with Check Ball and 45° Outlet – 142-001-PLB

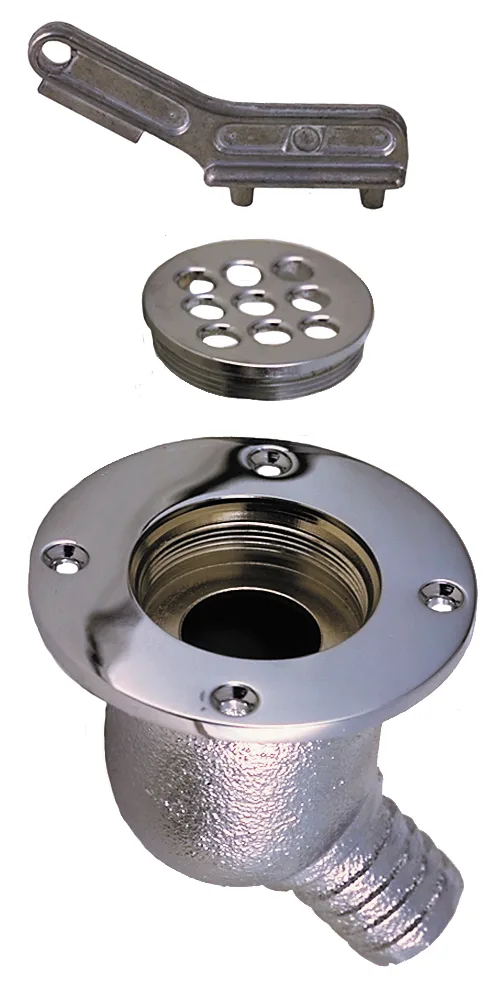

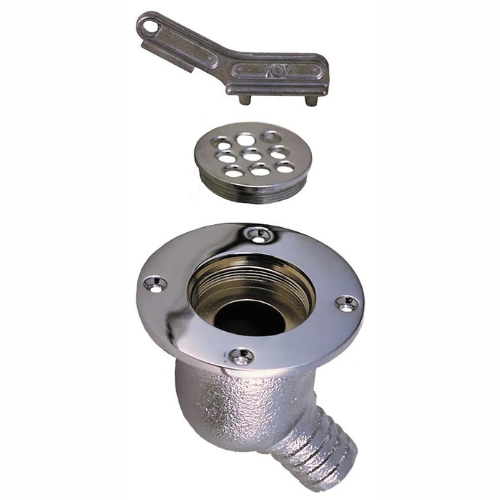

PERKO part 0142001PLB is a serviceable cockpit scupper designed for a below-waterline discharge. The internal rubber check ball helps resist reverse water flow, while the removable grate and included deck key provide access for inspection and cleaning.

Key Features

• Plain cast-bronze body
• Rubber check ball helps reduce water backflow
• 45° hose outlet simplifies routing behind the mounting surface
• Removable threaded grate for maintenance
• Deck key included

Installation and Application

• Designed for discharge locations below the waterline
• Connect to 25.4 mm (1 in.) hose using properly rated hose and clamps
• Bed the 82.6 mm (3-1/4 in.) flange with suitable marine sealant and secure with #8 fasteners
• Test drainage and check-ball movement after installation

Replacement Parts and Compatibility

• 0142P0199A – plain-bronze replacement grate
• 0142C0199A – chrome-plated replacement grate
• 014200199B – replacement rubber check ball
• 12487-8DP – replacement deck key

Detailed Selection and Service Information

• Figure 0142 is specifically intended for cockpit discharge locations below the waterline.
• The 1 in. model has a 46 mm grate, 82.6 mm flange, 45-degree hose outlet, rubber check ball and #8 mounting pattern.
• Catalog service parts are 0142P0199A plain-bronze grate, 0142C0199A chrome grate, 014200199B check ball and 12487-8DP deck key.

What’s in the Box

• 1 cast-bronze cockpit scupper
• 1 deck key

Specifications

• PERKO Manufacturer Part Number: 0142001PLB
• False Creek Fuels SKU: PER-142-001-PLB
• Material / Finish: Plain cast bronze
• Hose Size: 25.4 mm (1 in.)
• Outlet Angle: 45°
• Grate Outside Diameter: 46.0 mm (1-13/16 in.)
• Mounting-Flange Diameter: 82.6 mm (3-1/4 in.)
• Mounting-Hole Diameter: 54.0 mm (2-1/8 in.)
• Fastener Size: #8
• Check Valve: Rubber check ball
