Description

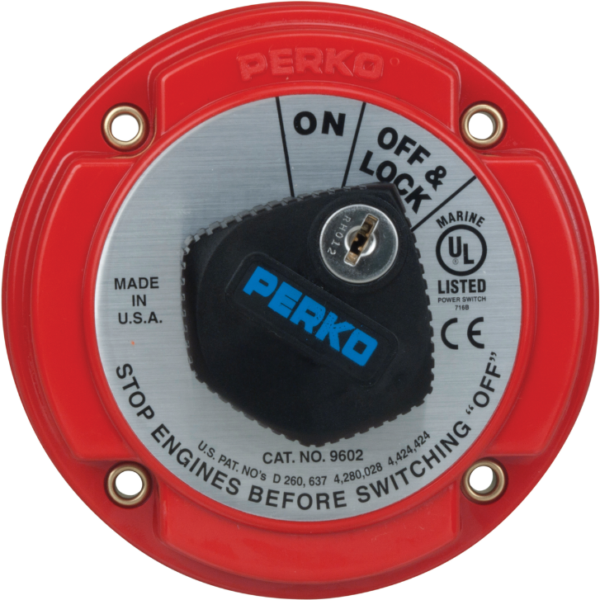

PERKO Bat Switch 250A With Key Lock – 9602-DP.
Perko 9601 Series battery On-Off switches are among the most popular battery switches ever produced. Their traditional Perko bolt circle makes for easy installation. These switches can be mounted in numerous locations. And as ignition protected switches, they can be installed in the engine rooms of gasoline powered boats.
Versions of the 9601 Series switches offer additional features such as alternator disconnect and key lock security.
Battery disconnect switches help manage the overall use of electrical power onboard. They are used to connect or disconnect electrical devices from the electrical system. They help to prevent battery drain during periods of inactivity. They allow for a quick and easy way to shut down the entire electrical system in an emergency. An optional key lock helps to prevent unauthorized use of the vessel.
Perko battery switches are designed for surface mounting. Standard duty disconnect switches have bright red polycarbonate reinforced housings for safety with large easy-to-turn black knobs. The housing of the heavy duty switches are red fiber-reinforced polycarbonate.
For use with alternators and generators 6-32 VDC Marine Electrical Systems
- Diameter: 5-1/4″
- Depth: 2-5/8″
- Polycarbonate Body with Brass Terminals
- Ignition Protected
- For use with 6 to 32 Volt Marine Electrical Systems
- Capacity – 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
- Terminal Stud Size: 5/16″
- When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned “OFF” with the engine running.
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
