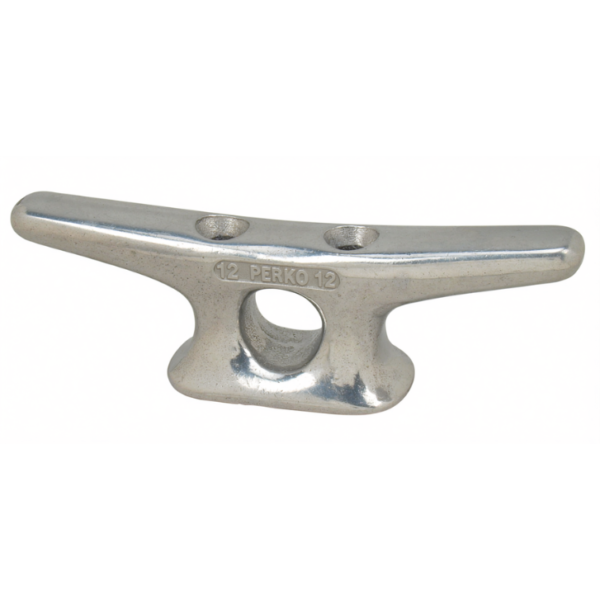

PERKO Plain Aluminum Open-Base Cleat, 12 in. – 530-012-ALU

Description

PERKO Plain Aluminum Open-Base Cleat, 12 in. – 530-012-ALU

This substantial open-base cleat provides a strong tie-off point for dock lines and other marine rope-handling applications. Its plain aluminum construction can be left natural or finished to suit the installation.

Product Details

• Open-base configuration provides access beneath the horns and simplifies line handling.
• Plain aluminum construction offers high strength with moderate weight.
• Overall length is 304.8 mm (12 in.); base footprint is 165.1 x 73.0 mm (6-1/2 x 2-7/8 in.).
• Accepts rope up to 25.4 mm (1 in.).
• Installs with 5/8 in. fasteners; use suitable backing plates and through-bolts for high-load mooring service.
• Bedding compound should be applied beneath the base where the mounting surface must remain watertight.

Specifications

• PERKO Manufacturer Part Number: 0530012ALU
• Product Type: Open-base marine cleat
• Material: Aluminum
• Finish: Plain
• Overall Length: 304.8 mm (12 in.)
• Base Dimensions: 165.1 x 73.0 mm (6-1/2 x 2-7/8 in.)
• Maximum Rope Size: 25.4 mm (1 in.)
• Mounting Fasteners: 5/8 in.
